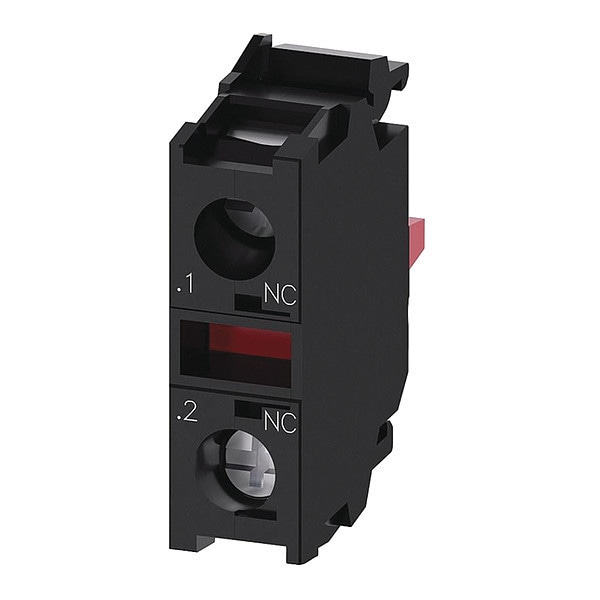

Item
|
Contact Block
|
|
Contact Form
|
1NC
|
|
Action
|
Momentary
|
|
Color
|
Black
|
|
Terminal Connection
|
Screw/Clamp
|
|
For Use With
|
3SU1 Operators
|
|
Standards
|
CE, CSA, UL
|
|
NEMA Contact Rating Designation
|
A600/R300
|
|
Application
|
Control Station
|
|
Contact Rating
|
10A @ 600V AC, 1A @ 600V DC
|
|
Safety Rating
|
IEC 60947
|
|
Positive Opening
|
Yes
|
|
Finely Stranded Without Core End Processing
|
2x (1,0 to 1,5 mm²)
|
|
Solid without Core End Processing
|
2x (1.0 to 1.5 mm²)
|
|
Type of Electrical Connection
|
screw-type terminals
|
|
Ambient Temperature During Storage
|
-40 to +80°C
|
|
Solid with Core End Processing
|
2x (0.5 to 0.75 mm²)
|
|
Operating Voltage AC at 60 Hz
|
5 to 500 V
|
|
Degree Of Pollution
|
3
|
|
Number of NO Contacts for Auxiliary Contacts Leading Contact
|
0
|
|
Number of NC Contacts for Auxiliary Contacts Lagging Switching
|
0
|
|
Operating Current at DC-13 at 500 V
|
0.1 A
|
|
Operating Current at DC-12 at 110 V
|
2.5 A
|
|
At AWG Conductors
|
2x (18 to 14)
|
|
Finely Stranded With Core End Processing
|
2x (0.5 to 1.5 mm²)
|
|
Number of NO Contacts for Auxiliary Contacts
|
0
|
|
Operating Voltage AC at 50 Hz
|
5 to 500 V
|
|
Operating Current at DC-13 at 110 V
|
0.7 A
|
|
Operating Current at DC-13 at 230 V
|
0.3 A
|
|
Shock Resistance acc. to IEC 60068-2-27
|
Sinusoidal half-wave 50 g / 11 ms
|
|
Operating Current at DC-12 at 230 V
|
1 A
|
|
Number of NC Contacts for Auxiliary Contacts
|
1
|
|
Mechanical Service Life (Switching Cycles)
|
10 000 000
|
|
Operating Current at AC-15 at 400 V
|
3 A
|
|
Shock Resistance for Railway Applications acc. to DIN EN 61373
|
Category 1, Class B
|
|
Mounting Type
|
Front plate mounting
|
|
Thermal Current
|
10 A
|
|
Number of CO Contacts for Auxiliary Contacts
|
0
|
|
Ambient Temperature During Operation
|
-25 to +70°C
|
|
Insulation Voltage Rated Value
|
500 V
|
|
Operating Current at AC-12 at 24 V
|
10 A
|
|
Terminal
|
IP20
|
|
Operating Voltage
|
AC/DC
|
|
Product Group
|
5452
|
|
Tightening Torque with Screw-type Terminals
|
0.8 to 0.9 N·m
|
|
Contact Reliability
|
One maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)
|
|
Operating Voltage DC
|
5 to 500 V
|
|
Operating Current at DC-13 at 400 V
|
0.1 A
|
|
Environmental Category During Operation acc. to IEC 60721
|
3M6, 3S2, 3B2, 3C3 (without salt spray), 3K6 (with relative humidity of 10 to 95%, no condensation in operation permitted)
|
|
Enclosure
|
IP40
|
|
Operating Current at DC-12 at 24 V
|
10 A
|
|
Operating Current at DC-12 at 400 V
|
0.3 A
|
|
Operating Current at AC-12 at 110 V
|
10 A
|
|
Operating Frequency Maximum
|
3 600 1/h
|
|
Operating Current at DC-13 at 48 V
|
1.5 A
|
|
Design of the Contact of Auxiliary Contacts
|
Silver alloy
|
|
Continuous Current of the C Characteristic MCB
|
10 A
|
|
Operating Current at AC-12 at 230 V
|
8 A
|
|
Operating Current at AC-15 at 500 V
|
1.4 A
|
|
Input Voltage
|
AC/DC
|
|
Operating Current at DC-12 at 48 V
|
5 A
|
|
Operating Current at AC-12 at 48 V
|
10 A
|
|
Operating Current at DC-12 at 500 V
|
0.3 A
|
|
Product Type Designation
|
3SU1
|
|
Surge Voltage Resistance Rated Value
|
6 kV
|
|
Operating Current at AC-12 at 400 V
|
8 A
|
|
Operating Current at AC-15 at 48 V
|
6 A
|
|
Operating Current at AC-15 at 24 V
|
6 A
|
|
Operating Current at AC-15 at 110 V
|
6 A
|
|
Product Designation
|
Contact module
|
|
Operating Current at DC-13 at 24 V
|
3 A
|
|
Electrical Endurance (Switching Cycles)
|
10 000 000
|
|
Operating Current at AC-15 at 230 V
|
6 A
|
