AC Contact Rating
3 A @ 240 V
Electrical Connection
Screw Clamp Terminals
DC Contact Rating
0.27 A @ 250 V
Electrical Durability
5000000 cycles, DC-13 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Indicating Light
No Indicating Light Included
Compatible with Manufacturer Model Number
ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85
Number of Mounting Holes
2
Mounting Hole Vertical Center to Center Distance
60 mm
NEMA Enclosure Rating
12, 4X
Compatible with Series
XC2J
Mounting Hole Horizontal Center to Center Distance
30 mm
Body Configuration
Non Plug-In
Series Name
standard format
Product Compatibility
XC2J
Maximum Resistance Across Terminals
0.25 mOhm IEC 60255-7 category 3
Short-Circuit Protection
10 A cartridge fuse gG
Environmental Characteristic
standard environment
Terminals Description Iso N°1
(11-12)NC || (23-24)NO || (13-14)NO || (21-22)NC
Ambient Air Temperature For Storage
-40-70°C
Contacts Type And Composition
1 C/O
[Ie] Rated Operational Current
3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 appendix A || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 appendix A
Contacts Material
silver plated contacts
Ik Degree Of Protection
IK08
[Ui] Rated Insulation Voltage
500 VIEC 60947-1 contact block || 300 VCSA C22.2 No 14 contact block
[Ithe] Conventional Enclosed Thermal Current
10 A
Minimum Actuation Speed
0.01 m/min
Contact Operation
snap action
Ip Degree Of Protection
IP65
Ambient Air Temperature For Operation
-25-70°C standard environment
Product Or Component Type

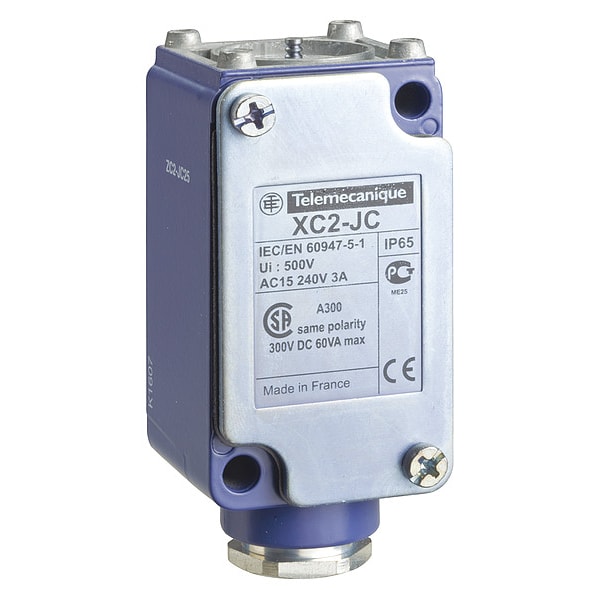

limit switch body
Number Of Steps
1 1 position
Compatible Manufacturer Part Number
ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85
Compatible Manufacturer Model Number
ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85
Compatible with Manufacturer Model No.
ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85
Compatible with Mfr. Model No.
ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85
For Use with Mfr Model Number
ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85
For Use With Mfr. Model Number
ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85
Compatible Pump Manufacturer Part Number
ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85
Compatible Mfr. Model Number
ZC2JE01, ZC2JE013, ZC2JE01H22, ZC2JE02, ZC2JE03, ZC2JE04, ZC2JE05, ZC2JE053, ZC2JE05H2, ZC2JE06, ZC2JE07, ZC2JE09, ZC2JE09H5, ZC2JE61, ZC2JE62, ZC2JE623, ZC2JE63, ZC2JE64, ZC2JE65, ZC2JE66, ZC2JE70, ZC2JE81, ZC2JE82, ZC2JE83, ZC2JE84, ZC2JE85
