  8. Limit Switch, Cat Whisker, Wobble Stick, 1NC/1NO, 4A at 240V AC, Actuator Location: Top

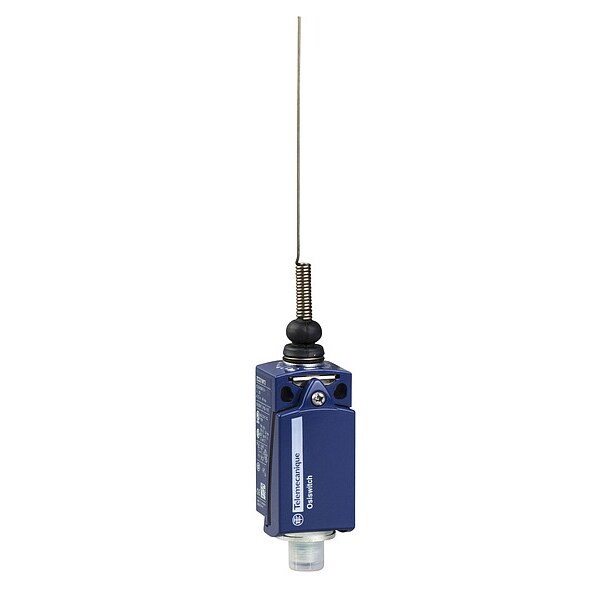

Telemecanique Sensors Limit Switch, Cat Whisker, Wobble Stick, 1NC/1NO, 4A at 240V AC, Actuator Location: Top XCKD2106M12 - main

Limit Switch, Cat Whisker, Wobble Stick, 1NC/1NO, 4A at 240V AC, Actuator Location: Top

  • Mfr # XCKD2106M12

  • Zoro # G2037463

product price:  $187.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Cat Whisker, Wobble Stick
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
4A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKD2106M12
Zoro #
G2037463
UPC #
785901834892
Country of Origin
France

Dimensions

Actuator Length - Limit Switch
5.19 in
Height
2.56"
Body Height - Limit Switch
2.56 in
Width
1.22"
Actuator Length
5.19"
Arm Width
0.05 in
Body Width - Limit Switch
1.22 in
Body Depth - Limit Switch
1.18 in
Depth
1.18"
Overall Depth
1.18 in
Manufacturer Warranty Length
18 mo
Body Width
1.22 in
Overall Height
2.56 in
Body Height
2.56 in
Overall Width
1.22 in
Body Depth
1.18 in
Mounting Hole Diameter
0.17 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Wobble Stick
Actuator Style - Limit Switch
Cat Whisker, Wobble Stick
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
4A at 240V
DC Contact Rating - Limit Switch
4A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Location
Top
Standards
CE, CSA, UL Listed
Body Material
Zamak
Voltage Rating
240VAC/DC
Electrical Connection
5-Pin M12 Connector
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Contact Form - Limit Switch
1NC/1NO
Mounting Hole - Limit Switch
(2) 0.17 in dia
Stem Thread - Limit Switch
No Stem
Amps
4
Travel
Total Travel 90 Degrees
Actuator Style (Limit Switch)
Wobble Stick, Cat Whisker
AC Contact Rating
4 A @ 240 V
Actuator Style
Cat Whisker
Wiring Entry
Connector
Mounting Hole Spacing - Limit Switch
0.75 in
Actuator Location (Limit Switch)
Top
Body Style (Limit Switch)
Miniature
Movement
Any Direction
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
IP67
Boot Sealed Actuator - Limit Switch
No
Series
XCKD
Operating Force
0.9 in-lb
Boot Sealed Actuator (Limit Switch)
No
Contact Form
1NO/1NC
Basic Actuator Style (Limit Switch)
Wobble Stick
Limit Switch Style
General Purpose Limit Switch
Arm Material
Steel
NEMA Rating
1, 12, 13, 2, 4, 6
DC Contact Rating
4 A @ 240 V
Certification
UL || CCC || CSA
Special Features
multi-directional approach
Head Material
zamak
Contact Action
snap action
Actuation Type
by any moving part
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Short Circuit Protection
4 A cartridge fuse gG
Weight
0.185 kg
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Min. Actuation Velocity Horizontal
1 m/s
Mechanical Durability
5000000 cycles
Head Type
multi-directional head
Resistance Properties
Shock Resistant, Vibration Resistant
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Operating Torque - Maximum
1.15 in-lb
Directional Movement
Omnidirectional
Mounting Hole Horizontal Center to Center Distance
22 mm
Mounting Style
Surface
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
158 Degrees F
Total Travel
90 Degrees
Type Of Operator
spring return cat''s whisker
Number Of Poles
2

Description

Limit Switch, Actuator Style - Limit Switch Cat Whisker, Wobble Stick, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 4A @ 240V, DC Contact Rating - Limit Switch 4A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 5.19 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
