  15. Limit Switch, Cross Roller, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top

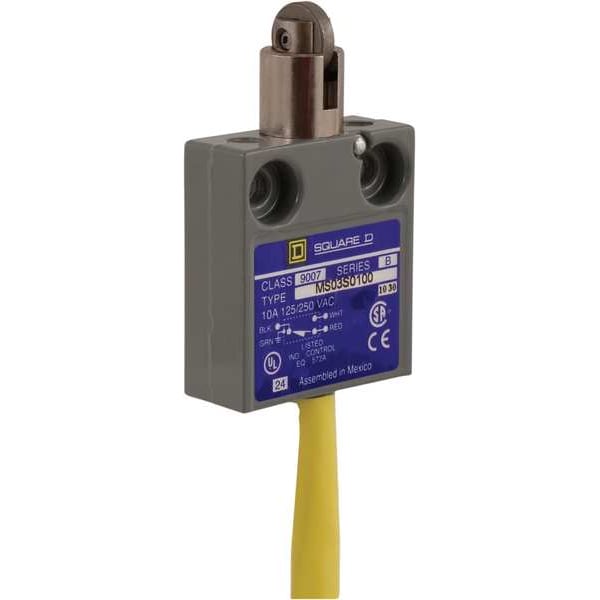

Telemecanique Sensors Limit Switch, Cross Roller, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top 9007MS03S0100 - main

Limit Switch, Cross Roller, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top

  • Mfr # 9007MS03S0100

  • Zoro # G2132855

product price: $106.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Cross Roller, Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9007MS03S0100
Zoro #
G2132855
UPC #
785901319566
Country of Origin
Mexico

Dimensions

Body Width - Limit Switch
1.58 in
Depth
0.62"
Roller Width
0.13 in
Actuator Length - Limit Switch
0.88 in
Height
2.63"
Width
1.56"
Actuator Length
0.88"
Body Depth - Limit Switch
0.62 in
Roller Dia.
0.5 in
Body Height - Limit Switch
1.75 in
Overall Depth
0.62 in
Body Depth
0.62 in
Mounting Hole Diameter
0.2 in
Overall Width
1.56 in
Roller Diameter
0.5 in
Body Height
1.75 in
Overall Height
1.75 in
Manufacturer Warranty Length
18 mo
Body Width
1.58 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Cross Roller, Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
5A at 28V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Electrical Connection
3 ft Cable, 4 Wire
Operating Force
5.0 in-lb
Roller Material
Steel
DC Contact Rating
5A at 28V
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Contact Form
SPDT
Operating Temp. Range
-4 Degrees to 221 Degrees F (-20 Degrees to 105 Degrees C)
Boot Sealed Actuator - Limit Switch
No
Actuator Style (Limit Switch)
Plunger, Cross Roller
Limit Switch Style
General Purpose Limit Switch
Travel
0.19 in
Actuator Location
Top
AC Contact Rating
10A at 300V
Movement
Horizontal
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Body Material
Zinc
Actuator Location (Limit Switch)
Top
Contact Form - Limit Switch
SPDT
Mounting Hole Spacing - Limit Switch
0.98 in
IP Rating
67
Series
9007MS
Wiring Entry
Potted Cable
Standards
CE, CSA, UL
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole - Limit Switch
(2) 0.20 in dia
Number of Poles
1
Body Style (Limit Switch)
Miniature
Voltage Rating
240VAC/28VDC
Stem Thread - Limit Switch
No Stem
Actuator Style
Cross Roller Plunger
Amps
10 AC/5 DC
Basic Actuator Style (Limit Switch)
Plunger
Special Features
traverse approach, 2 directions
Certification
CSA || UL || CE
Contact Material
silver contacts
Shock Resistance
35 gn 9 ms IEC 60068-2-27
Weight
1.2 lb(US)
Head Type
plunger head
Electrical Durability
100000 cycles
Vibration Resistance
10 gn 75-1200 Hz)IEC 60068-2-6
Contact Action
snap action
Actuation Type
by 30° cam
Mechanical Durability
10000000 cycles
Mounting Hole Horizontal Center to Center Distance
25 mm
Operating Temperature - Minimum
-40 Degrees F
Directional Movement
Linear
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Mounting Style
Surface
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Maximum
220 Degrees F
Operating Force - Maximum
80 ozf
Type Of Operator
spring return cross roller plunger steel

Description

Limit Switch, Actuator Style - Limit Switch Cross Roller, Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 5A @ 28V, Contact Form- Switches SPDT, Actuator Length - Limit Switch 0.88 in, Body Height - Limit Switch 1.75 in, Body Width - Limit Switch 1.58 in, Body Depth - Limit Switch 0.62 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
