  15. Limit Switch Head, Cat Wisker, Top, 4.75 In

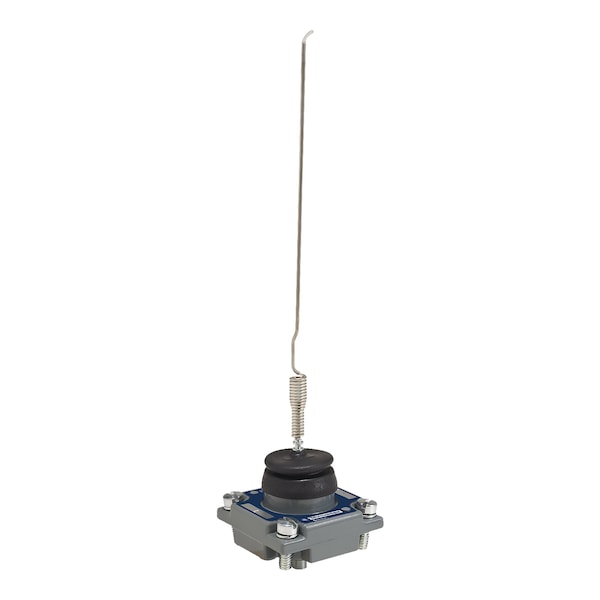

Telemecanique Sensors Limit Switch Head, Cat Wisker, Top, 4.75 In 9007L - main

Limit Switch Head, Cat Wisker, Top, 4.75 In

  • Mfr # 9007L

  • Zoro # G0635616

product price: $28.35
/ea

Key Features

Actuator Style
Cat Whisker
Actuator Location
Top
Actuator Length
4.75 in
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007L
Zoro #
G0635616
UPC #
785901543558
Country of Origin
Mexico

Dimensions

Actuator Length
4.75 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
Actuator Style
Cat Whisker
Actuator Location
Top
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
Movement
Omnidirectional
IP Rating
IP67
Description/Special Features
Momentary
Standards
CSA, UL Listed
Amps
10
Operating Temp.
0 Degrees to 185 Degrees F
Travel
90 Degrees
Operating Force
7 in-oz
Action
Momentary
Compatible with Series
9007C
Operating Temperature - Maximum
185 Degrees F
Operating Torque
0.44 in-lb
Total Travel
90 Degrees
Includes Actuator
Actuator Included
Operating Temperature - Minimum
0 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Directional Movement
Omnidirectional
Movement Of Operating Head
multi-directional
Type Of Operator
spring return wire whisker steel -
Positive Opening
without
Head Type
multi-directional head
Product Or Component Type
limit switch head
Associated Body
9007C
Type Of Approach
multi-directional approach, multi-directional approach
Product Compatibility
9007C
Series Name
heavy duty
Device Short Name
9007C
Ambient Air Temperature For Operation
0-185°F
Environmental Characteristic
standard environment
Switch Actuation
any direction
Ambient Air Temperature For Storage
0-185°F
Associated Lever
9007C

Description

Limit Switch Head, Actuator Style Cat Whisker, Actuator Location Top, Actuator Length 4.75 in, Contact Form Not Applicable, Amps 10, Voltage Rating Not Applicable, Travel 90 Degrees , Movement Omnidirectional, Operating Force 7 in-oz, Operating Temp. 0 Degrees to 185 Degrees F, NEMA Rating 13, 4, 6P, IP Rating IP67, Standards CSA, UL Listed, For Use With 9007 Type C
