  15. Limit Switch Head, Cat Wisker, Top, 5.56 In

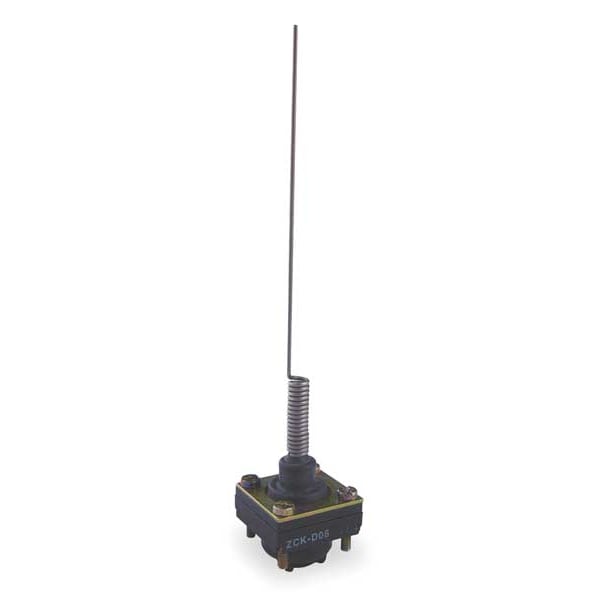

Telemecanique Sensors Limit Switch Head, Cat Wisker, Top, 5.56 In ZCKE06 - main

Limit Switch Head, Cat Wisker, Top, 5.56 In

  • Mfr # ZCKE06

  • Zoro # G3117554

product price: $60.45
/ea

Key Features

Actuator Style
Cat Whisker
Actuator Location
Top
Actuator Length
5.56 in
For Use With
Mfr. No. XCKJ
NEMA Rating
1, 12, 2, 3, 4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCKE06
Zoro #
G3117554
UPC #
785901256410
Country of Origin
Multiple

Dimensions

Actuator Length
5.56 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
Actuator Style
Cat Whisker
Actuator Location
Top
For Use With
Mfr. No. XCKJ
NEMA Rating
1, 12, 2, 3, 4
Movement
Omnidirectional
IP Rating
Not Rated
Operating Force
1.44 in-oz
Travel
90 Degrees
Standards
EU RoHS, REACH
Operating Temp.
-25 Degrees to 70 Degrees F
Description/Special Features
Momentary
Amps
3A/0.27A
Head Material
metal
Series Name
standard format
Product Compatibility
XCKJ
Switch Actuation
by any moving part
Movement Of Operating Head
multi-directional
Device Short Name
ZCKE
Associated Body
ZCKJ5H7 || ZCKJD39 || ZCKJ2 || ZCKJD39H29 || ZCKJ5H29 || ZCKJ1 || ZCKJ11H7 || ZCKJ6H29 || ZCKJ21 || ZCKJD37H29 || ZCKJ1H7 || ZCKJ5 || ZCKJ21H29 || ZCKJ9 || ZCKJ9H29 || ZCKJ6H7 || ZCKJ9H7 || ZCKJD35 || ZCKJD39H7 || ZCKJD31 || ZCKJ2H29 || ZCKJD37 || ZCKJD37H7 || ZCKJ21H7 || ZCKJ8H7 || ZCKJ8 || ZCKJ7H7 || ZCKJD31H7 || ZCKJ11 || ZCKJ8H29 || ZCKJ7 || ZCKJD35H29 || ZCKJ11H29 || ZCKJD31H29 || ZCKJ2H7 || ZCKJ1H29 || ZCKJ7H29 || ZCKJ6 || ZCKJD35H7
Product Or Component Type
limit switch head
Ambient Air Temperature For Storage
-40-70°C
Head Type
multi-directional head
Positive Opening
without
Type Of Operator
cat's whisker spring return
Ambient Air Temperature For Operation
-25-70°C
Type Of Approach
multi-directional approach
Environmental Characteristic
standard environment
Action
Momentary
Includes Actuator
Actuator Included
Operating Torque
0.09 in-lb
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Total Travel
90 Degrees
NEMA Enclosure Rating
1, 12, 2, 3, 4
Compatible with Series
XCKJ
Directional Movement
Omnidirectional

Description

Limit Switch Head, Actuator Style Cat Whisker, Actuator Location Top, Actuator Length 5.56 in, Contact Form Not Applicable, Amps 3A/0.27A, Voltage Rating Not Applicable, Travel 90 Degrees , Movement Omnidirectional, Operating Force 1.44 in-oz, Operating Temp. -25 Degrees to 70 Degrees F, NEMA Rating 1, 12, 2, 3, 4, IP Rating Not Rated, Standards EU RoHS, REACH, For Use With Mfr. No. XCKJ
