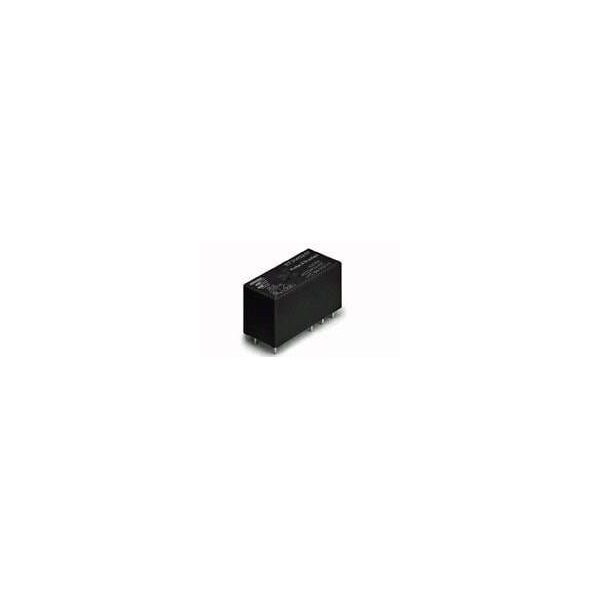

Te Connectivity PCB, Socket, Power Relay, 0.33 A, PCB, Plug-in 4-1419108-0 - main

PCB, Socket, Power Relay, 0.33 A, PCB, Plug-in

  • Mfr # 4-1419108-0

  • Zoro # G301025983

product price:  $5.55
/ea
Sold in multiples of 20 for $111.00

Key Features

Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug-in
Coil Voltage
5V DC
Current Rating
0.33 A
Features
UL Coil Insulation Class F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4-1419108-0
Zoro #
G301025983
UPC #
-
Country of Origin
China

Details

Item
Power Relay
Mounting Style
PCB, Socket
Electrical Connection
PCB, Plug-in
Coil Voltage
5V DC
Current Rating
0.33 A
Features
UL Coil Insulation Class F
Number of Poles
2
Contact Material
AgNi90/10
Power Consumption - Relay
403 mW
Dielectric Voltage
2500 Vrms Adjacent Contacts; 5000 Vrms Coil and Contact; 1000 Vrms Open Contacts
Contact Rating
0.333333333333333A
Contact Limiting Breaking Current
8A
Insulation Clearance
.394 in
Operating Temp. Range
85°C
Contact Voltage Rating
250 VAC
Insulation Creepage
.394 in
Contact Limiting Continuous Current
8A
Protection Category
RTIII
Switching Voltage
400 VAC
Contact Limiting Making Current
15 A
Coil Type
Monostable, DC
Coil Resistance
62 Ω
Number of Pins
8
Contact Form
DPDT-CO
Contact Rating (AC)
8 A @ 250V

Description
