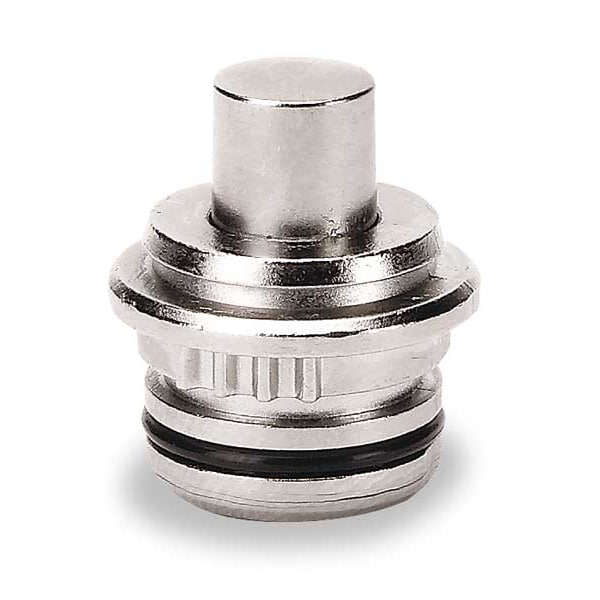

Telemecanique Sensors Limit Switch Head, Plunger, Top, 0.39 In ZCE10 - main

Limit Switch Head, Plunger, Top, 0.39 In

  • Mfr # ZCE10

  • Zoro # G0287357

product price:  $12.89
/ea

Key Features

For Use With
Mfr. No. XCKD, XCKP, XCKT, XCMD
Actuator Location
Top
Operating Force
1.9 in-lb
Actuator Type
Plunger
Operating Temp.
-25 Degrees to 70 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ZCE10
Zoro #
G0287357
UPC #
785901449980
Country of Origin
Indonesia

Dimensions

Arm Depth
0.39 in
Actuator Length
0.39 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
For Use With
Mfr. No. XCKD, XCKP, XCKT, XCMD
Actuator Location
Top
Operating Force
1.9 in-lb
Actuator Type
Plunger
Operating Temp.
-25 Degrees to 70 Degrees F
Actuator Style
Plunger
Movement
Omnidirectional
Description/Special Features
Momentary
Travel
0.20 in
Standards
EU RoHS, REACH
IP Rating
Not Rated
Positive Opening
with
Ambient Air Temperature For Operation
-25-70°C
Movement Of Operating Head
linear
Device Short Name
ZCE
Type Of Operator
end plunger spring return metal
Associated Body
Head Type
plunger head
Product Or Component Type
limit switch head
Environmental Characteristic
standard environment
Product Compatibility
XCMD || XCKT || XCKD || XCKP
Series Name
standard format
Type Of Approach
vertical approach, 1 direction
Ambient Air Temperature For Storage
-40-70°C
Operating Torque
1.9 in-lb
NEMA Enclosure Rating
Not Rated
Operating Temperature - Minimum
-13 Degrees F
Compatible with Series
XCKD, XCKP, XCKT, XCMD
Action
Momentary
Directional Movement
Linear
Includes Actuator
Actuator Included
Operating Temperature - Maximum
158 Degrees F

Description

Limit Switch Head, Actuator Style Plunger, Actuator Location Top, Actuator Length 0.39 in, Travel 0.20 in, Movement Omnidirectional, Operating Force 1.9 in-lb, Operating Temp. -25 Degrees to 70 Degrees F, IP Rating Not Rated, Standards EU RoHS, REACH, For Use With Mfr. No. XCKD, XCKP, XCKT, XCMD
