  15. Limit Switch Head, Rllr Plngr, Top, 1.42 in

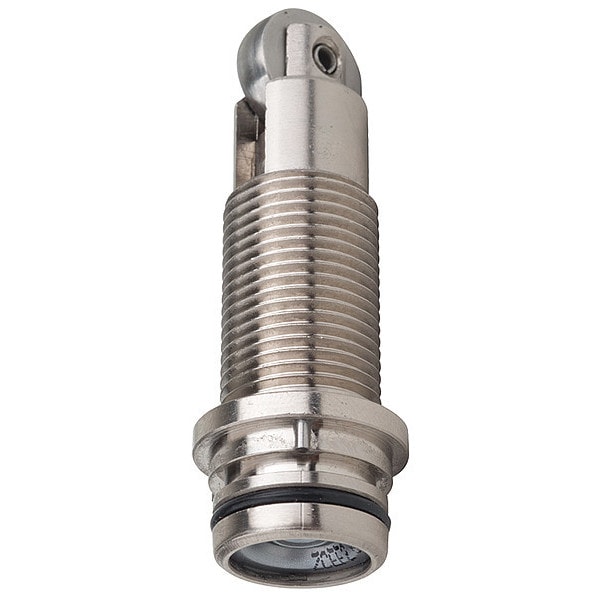

Telemecanique Sensors Limit Switch Head, Rllr Plngr, Top, 1.42 in ZCEF2 - main

Limit Switch Head, Rllr Plngr, Top, 1.42 in

  • Mfr # ZCEF2

  • Zoro # G6553906

product price: $61.45
/ea

Key Features

Actuator Style
Push Roller Plunger
Actuator Location
Top
Actuator Length
1.42 in
For Use With
Mfr. No. XCKD, XCKP, XCKT, XCMD
Actuator Type
Roller Plunger
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCEF2
Zoro #
G6553906
UPC #
785901434023
Country of Origin
Indonesia

Dimensions

Actuator Length
1.42 in
Arm Length
1.42 in
Manufacturer Warranty Length
18 mo
Arm Length - Maximum
1.42 in

Details

Item
Limit Switch Head
Actuator Style
Push Roller Plunger
Actuator Location
Top
For Use With
Mfr. No. XCKD, XCKP, XCKT, XCMD
Actuator Type
Roller Plunger
IP Rating
Not Rated
Operating Force
2.70 in.-lb
Standards
EU RoHS, REACH
Head Type
M12 plunger head
Type Of Approach
lateral approach, 2 directions
Ambient Air Temperature For Operation
-25-70°C
Product Or Component Type
limit switch head
Ambient Air Temperature For Storage
-40-70°C
Series Name
standard format
Movement Of Operating Head
linear
Switch Actuation
by 30° cam
Associated Body
Positive Opening
with
Type Of Operator
roller plunger spring return metal
Device Short Name
ZCE
Environmental Characteristic
standard environment
Product Compatibility
XCKT || XCKP || XCKD || XCMD
Directional Movement
Linear
Operating Temperature - Maximum
158 Degrees F
Compatible with Series
XCKD, XCKP, XCKT, XCMD
Action
Momentary
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
Not Rated
Includes Actuator
Actuator Included

Description

Limit Switch Head, Actuator Style Push Roller Plunger, Actuator Location Top, Actuator Length 1.42 in, Contact Form Not Applicable, Amps Not Applicable, Voltage Rating Not Applicable, Travel 0.31 in, Movement Vertical, Operating Force 2.70 in.-lb, Operating Temp. -25 Degrees to 70 Degrees F, NEMA Rating Not Rated, IP Rating Not Rated, Standards EU RoHS, REACH, For Use With Mfr. No. XCKD, XCKP, XCKT, XCMD
