  13. Limit Switch Head, Rollr Lvr, Side, 1.36 In
Shop All Limit Switch Heads
Telemecanique Sensors

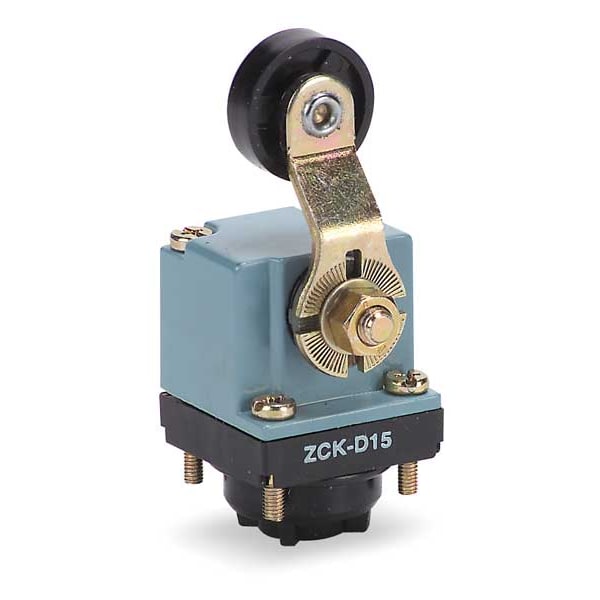

Limit Switch Head, Rollr Lvr, Side, 1.36 In

product price: $52.55
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Actuator Style Roller Lever Plunger
  • Actuator Location Side
  • Actuator Length 1.36 in
  • For Use With Mfr. No. XCKL, XCKM
  • NEMA Rating 1, 12, 2, 3, 4
See all product information

Product Information

Dimensions

Actuator Length 1.36 in
Arm Length - Maximum 1.36 in
Manufacturer Warranty Length 18 mo

Details

Item Limit Switch Head
Actuator Style Roller Lever Plunger
Actuator Location Side
For Use With Mfr. No. XCKL, XCKM
NEMA Rating 1, 12, 2, 3, 4
Movement Left and Right
Operating Force 1.77 in-lb
Description/Special Features Momentary
IP Rating Not Rated
Operating Temp. -25 Degrees to 70 Degrees F
Standards EU RoHS, REACH
Amps 3A/0.27A
Travel 70 Degrees
Ambient Air Temperature For Operation -25-70°C
Movement Of Operating Head rotary
Positive Opening with
Ambient Air Temperature For Storage -40-70°C
Type Of Operator roller lever spring return metal
Series Name standard format
Associated Body ZCKM7H7 || ZCKL5H7 || ZCKL5 || ZCKM1H7 || ZCKLD39H7 || ZCKM7H29 || ZCKL8H7 || ZCKLD35 || ZCKMD35H7 || ZCKLD37 || ZCKMD39H29 || ZCKLD35H7 || ZCKMD37H29 || ZCKL1H7 || ZCKM5H7 || ZCKMD35 || ZCKM9 || ZCKL7H7 || ZCKM5H29 || ZCKL6H7 || ZCKM9H29 || ZCKM6H7 || ZCKMD37 || ZCKMD31H7 || ZCKMD31H29 || ZCKL6 || ZCKM6 || ZCKLD31 || ZCKL8 || ZCKM7 || ZCKMD39H7 || ZCKMD35H29 || ZCKLD37H7 || ZCKL1 || ZCKLD31H7 || ZCKM6H29 || ZCKMD39 || ZCKM8H7 || ZCKM1 || ZCKMD31 || ZCKM8 || ZCKL7 || ZCKMD37H7 || ZCKM8H29 || ZCKM5 || ZCKLD39 || ZCKM1H29
Switch Actuation by 30° cam
Product Or Component Type limit switch head
Head Type rotary head
Head Material metal
Device Short Name ZCKD
Environmental Characteristic standard environment
Type Of Approach lateral approach, 2 directions
Product Compatibility XCKL || XCKM
Operating Temperature - Maximum 158 Degrees F
Directional Movement Linear
Operating Torque 1.77 in-lb
Total Travel 70 Degrees
NEMA Enclosure Rating 1, 12, 2, 3, 4
Includes Actuator Actuator Included
Compatible with Series XCKL, XCKM
Action Momentary
Operating Temperature - Minimum -13 Degrees F

Description

Limit Switch Head, Actuator Style Roller Lever, Actuator Location Side, Actuator Length 1.36 in, Contact Form Not Applicable, Amps 3A/0.27A, Voltage Rating Not Applicable, Travel 70 Degrees , Movement Left and Right, Operating Force 1.77 in-lb, Operating Temp. -25 Degrees to 70 Degrees F, NEMA Rating 1, 12, 2, 3, 4, IP Rating Not Rated, Standards CCC, CE, CSA, UL, For Use With Mfr. No. XCKL, XCKM
