  15. Limit Switch Head, Wbbl Stick, Top, 3.95 In

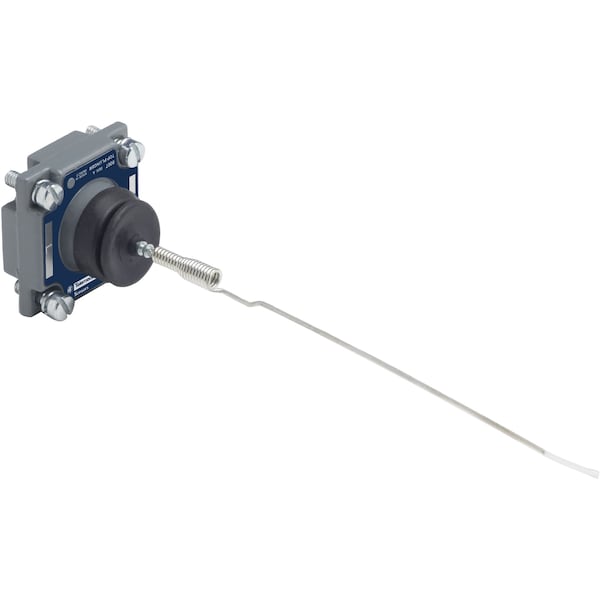

Telemecanique Sensors Limit Switch Head, Wbbl Stick, Top, 3.95 In 9007K - main

Limit Switch Head, Wbbl Stick, Top, 3.95 In

  • Mfr # 9007K

  • Zoro # G0381762

product price: $90.29
/ea
Free Shipping & Returns

Key Features

Actuator Style
Wobble Stick
Actuator Location
Top
Actuator Length
3.95 in
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007K
Zoro #
G0381762
UPC #
785901543534
Country of Origin
Mexico

Dimensions

Actuator Length
3.95 in
Manufacturer Warranty Length
18 mo
Overall Height
11.5 in

Details

Item
Limit Switch Head
Actuator Style
Wobble Stick
Actuator Location
Top
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
Movement
Omnidirectional
Description/Special Features
11.5 in Length From Tip to Bottom Rubber Boot, Die-Cast Zinc Alloy Body
Standards
CSA, UL Listed
IP Rating
IP67
Operating Temp.
0 Degrees to 185 Degrees F
Travel
90 Degrees
Operating Force
4.0 in-lb
Operating Temperature - Maximum
185 Degrees F
Directional Movement
Omnidirectional
Action
Momentary
Operating Temperature - Minimum
0 Degrees F
Includes Actuator
Actuator Included
Compatible with Series
9007C
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Features
Die-Cast Zinc Alloy Body
Total Travel
90 Degrees
Operating Torque
4 in-lb
Head Type
multi-directional head
Switch Actuation
any direction
Product Or Component Type
limit switch head
Type Of Approach
multi-directional approach, multi-directional approach
Environmental Characteristic
standard environment
Type Of Operator
spring return wobble stick steel wire extension
Ambient Air Temperature For Operation
0-185°F
Associated Body
9007C
Associated Lever
9007C
Movement Of Operating Head
multi-directional
Ambient Air Temperature For Storage
0-185°F
Series Name
heavy duty
Positive Opening
without
Product Compatibility
9007C
Device Short Name
9007C

Description

Limit Switch Head, Actuator Style Wobble Stick, Actuator Location Top, Actuator Length 3.95 in, Contact Form Not Applicable, Amps Not Applicable, Voltage Rating Not Applicable, Travel 90 Degrees , Movement Omnidirectional, Operating Force 4.0 in-lb, Operating Temp. 0 Degrees to 185 Degrees F, NEMA Rating 13, 4, 6P, IP Rating IP67, Standards CSA, UL Listed, For Use With 9007 Type C
