  15. Limit Switch Head, Wbbl Stick, Top, 3.95 In

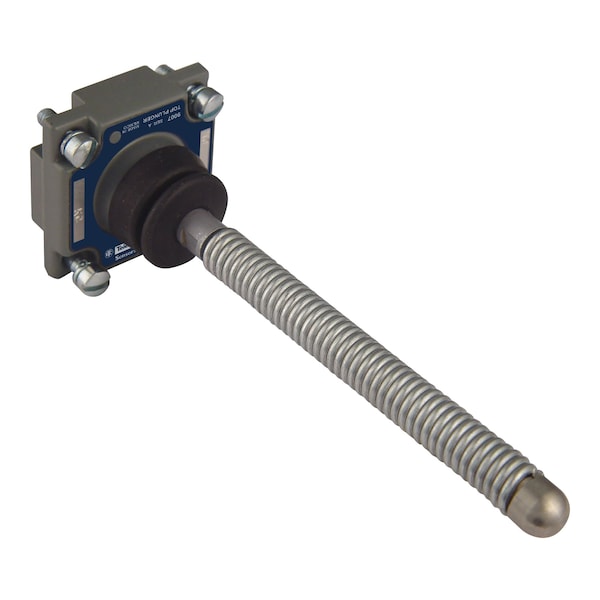

Telemecanique Sensors Limit Switch Head, Wbbl Stick, Top, 3.95 In 9007KC - main

Limit Switch Head, Wbbl Stick, Top, 3.95 In

  • Mfr # 9007KC

  • Zoro # G2276145

product price: $89.15
/ea
Free Shipping & Returns

Key Features

Actuator Style
Coil Spring
Actuator Location
Top
Actuator Length
3.95 in
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007KC
Zoro #
G2276145
UPC #
785901543541
Country of Origin
Mexico

Dimensions

Actuator Length
3.95 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
Actuator Style
Coil Spring
Actuator Location
Top
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
Movement
Omnidirectional
Amps
10
IP Rating
IP67
Operating Temp.
0 Degrees to 185 Degrees F
Operating Force
4.0 in-lb
Standards
CSA, UL Listed
Travel
90 Degrees
Description/Special Features
Momentary
Operating Temperature - Maximum
185 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Compatible with Series
9007C
Includes Actuator
Actuator Included
Directional Movement
Omnidirectional
Action
Momentary
Total Travel
90 Degrees
Operating Torque
4 in-lb
Operating Temperature - Minimum
0 Degrees F
Positive Opening
without
Environmental Characteristic
standard environment
Product Compatibility
9007C
Associated Body
9007C
Head Type
multi-directional head
Type Of Approach
multi-directional approach, multi-directional approach
Associated Lever
9007C
Device Short Name
9007C
Product Or Component Type
limit switch head
Switch Actuation
any direction
Type Of Operator
spring return wobble stick steel coil spring extension
Ambient Air Temperature For Operation
0-185°F
Series Name
heavy duty
Ambient Air Temperature For Storage
0-185°F
Movement Of Operating Head
multi-directional

Description

Limit Switch Head, Actuator Style Coil Spring, Actuator Location Top, Actuator Length 3.95 in, Contact Form Not Applicable, Amps 10, Voltage Rating Not Applicable, Travel 90 Degrees , Movement Omnidirectional, Operating Force 4.0 in-lb, Operating Temp. 0 Degrees to 185 Degrees F, NEMA Rating 13, 4, 6P, IP Rating IP67, Standards CSA, UL Listed, For Use With 9007 Type C
