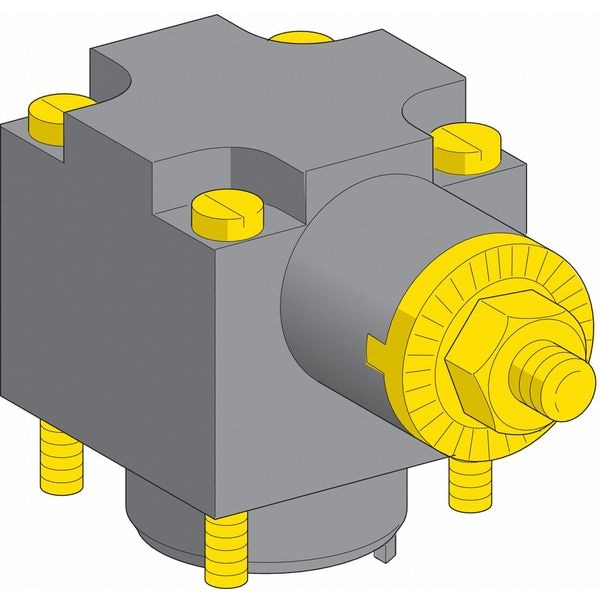

Telemecanique Sensors Limit Switch Head ZCKD05 - main

Limit Switch Head

  • Mfr # ZCKD05

  • Zoro # G0560966

product price: $43.95
/ea

Key Features

Actuator Style
Rotary Lever
Actuator Location
Side
Head Material
plastic
IP Rating
Not Rated
Head Type
rotary head
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ZCKD05
Zoro #
G0560966
UPC #
785901647034
Country of Origin
Multiple

Details

Item
Limit Switch Head
Actuator Style
Rotary Lever
Actuator Location
Side
Head Material
plastic
IP Rating
Not Rated
Head Type
rotary head
Includes Actuator
No Actuator Included
Action
Momentary
Directional Movement
CCW/CW
NEMA Enclosure Rating
Not Rated
Compatible with Series
XCKL, XCKM, XCKS
Series Name
standard format
Positive Opening
without || with
Ambient Air Temperature For Storage
-40-70°C
Movement Of Operating Head
rotary
Associated Body
ZCKMD37H7 || ZCKMD37H29 || ZCKM1H29 || ZCKL7H7 || ZCKM1 || ZCKL1 || ZCKSD39H29 || ZCKL8H7 || ZCKSD37 || ZCKM5H7 || ZCKSD31H29 || ZCKMD31H29 || ZCKSD31 || ZCKLD35H7 || ZCKM6H29 || ZCKLD31H7 || ZCKMD37 || ZCKLD39 || ZCKS7 || ZCKLD39H7 || ZCKL1H7 || ZCKM5 || ZCKS404H29 || ZCKMD39H29 || ZCKS8 || ZCKMD35 || ZCKM9 || ZCKS2 || ZCKMD35H7 || ZCKL7 || ZCKM6 || ZCKM8H7 || ZCKL5 || ZCKLD37H7 || ZCKMD39H7 || ZCKSD35H29 || ZCKS7H29 || ZCKS6H29 || ZCKSD37H29 || ZCKS1H29 || ZCKL6 || ZCKM9H29 || ZCKM7 || ZCKSD35 || ZCKLD37 || ZCKM7H29 || ZCKS9H29 || ZCKS9 || ZCKMD31H7 || ZCKS8H29 || ZCKM6H7 || ZCKM1H7 || ZCKLD31 || ZCKM8H29 || ZCKS5 || ZCKS1 || ZCKL8 || ZCKS2H29 || ZCKL6H7 || ZCKM7H7 || ZCKL5H7 || ZCKMD35H29 || ZCKMD31 || ZCKLD35 || ZCKM8 || ZCKMD39 || ZCKS5H29 || ZCKS6 || ZCKM5H29 || ZCKSD39
Environmental Characteristic
standard environment
Device Short Name
ZCKD
Product Or Component Type
limit switch head
Type Of Approach
lateral approach, 1 or 2 programmable direction
Switch Actuation
from left and/or right || CW and/or CCW
Product Compatibility
XCKS || XCKM || XCKL
Type Of Operator
without operating lever spring return
Associated Lever
ZCKY39 || ZCKY33 || ZCKY91 || ZCKY43 || ZCKY59 || ZCKY54 || ZCKY81 || ZCKY31 || ZCKY55 || ZCKY41 || ZCKY49 || ZCKY34
Ambient Air Temperature For Operation
-25-70°C

Description

Limit Switch Head, Actuator Style Rotary Lever, Actuator Location Side, Actuator Length Not Applicable, IP Rating Not Rated
