  15. Limit Switch, NC-NO SPDT-DB; Form Z, 15A @ 600V AC

This item is Discontinued.

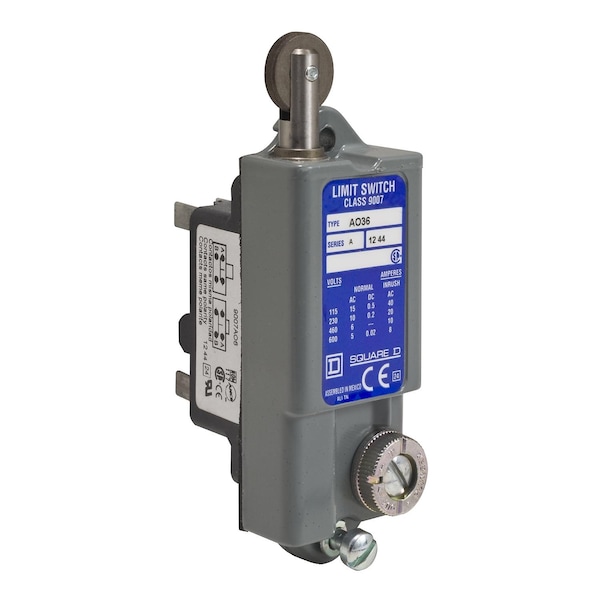

Telemecanique Sensors Limit Switch, NC-NO SPDT-DB; Form Z, 15A @ 600V AC 9007AO36

Limit Switch, NC-NO SPDT-DB; Form Z, 15A @ 600V AC (Discontinued)

  • Mfr # 9007AO36
  • Zoro # G0839776
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007AO36
Zoro #
G0839776
UPC #
785901817239
Country of Origin
Mexico

Dimensions

Body Height - Limit Switch
3.47in
Width
2.38 in
Body Depth - Limit Switch
1.38 in

Details

Item
Limit Switch
Contact Form- Switches
NC-NO SPDT-DB; Form Z
AC Contact Rating - Limit Switch
15A @ 600V
Mounting - Limit Switch
open type
Contact Form
Form Z
Electrical Connection
1-2 screw-clamp terminals AWG 22...AWG 12)
Special Features
traverse approach, 2 directions
IP Rating
IP20 conforming to IEC 60529
Body Style (Limit Switch)
plug-in
NEMA Rating
NEMA 1 Nema type 250
Contact Material
silver contacts
Movement
linear
Operating Temp. Range
0-185 °F
Body Material
cast zinc, metal
Series
9007AW
Operating Force
3 lbf
Head Type
plunger head
Actuation Type
by 30° cam
Contact Action
snap action
Weight
0.1 lb(US)
Number Of Poles
1
Type Of Operator
spring return roller plunger steel with micrometer adjustment

Description

Limit Switch 600Vac 15Amp Ao +Options
