  8. Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

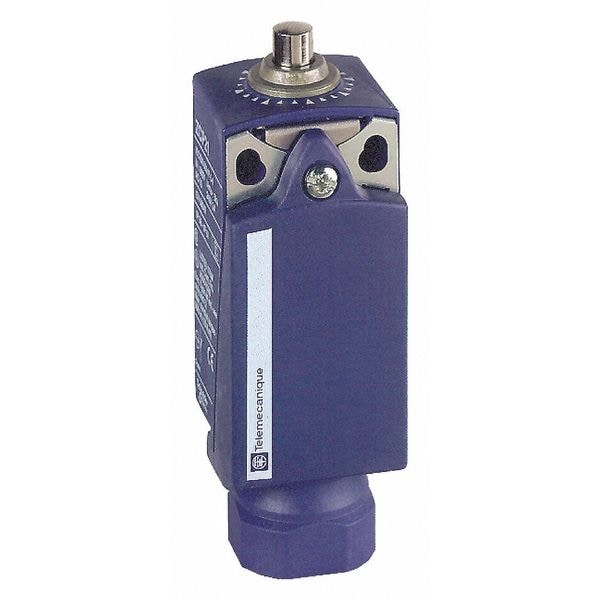

Telemecanique Sensors Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKP2110N12 - main

Limit Switch, Plunger, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKP2110N12

  • Zoro # G2868214

product price:  $71.75
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKP2110N12
Zoro #
G2868214
UPC #
785901300427
Country of Origin
France

Dimensions

Height
2.56"
Actuator Length
0.39"
Actuator Length - Limit Switch
0.39 in
Width
1.22"
Body Height - Limit Switch
2.56 in
Depth
1.18"
Body Width - Limit Switch
1.22 in
Body Depth - Limit Switch
1.18 in
Body Width
1.21 in
Overall Width
1.21 in
Overall Height
3.12 in
Mounting Hole Diameter
0.17 in
Overall Depth
1.26 in
Body Height
2.56 in
Body Depth
1.2 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Body Material
plastic
Movement
Vertical
Actuator Style (Limit Switch)
Plunger
Boot Sealed Actuator (Limit Switch)
No
DC Contact Rating
0.27 A @ 250 V
Contact Form
1NO/1NC
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Operating Force
1.9 in-lb
Actuator Location
Top
Wiring Entry
1/2 in NPT
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Actuator Style
Plunger
Arm Material
Metal
Mounting Hole - Limit Switch
(2) 0.17 in dia
AC Contact Rating
10 A @ 240 V
Amps
10
Actuator Location (Limit Switch)
Top
Electrical Connection
Screw Clamp Terminals
Operating Temp. Range
-13 Degrees to 158 Degrees F
NEMA Rating
1, 12, 13, 2, 4, 6
IP Rating
IP66, IP67
Voltage Rating
240VAC/DC
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Contact Form - Limit Switch
1NC/1NO
Basic Actuator Style (Limit Switch)
Plunger
Body Style (Limit Switch)
Miniature
Travel
0.20 in
Series
XCKP
Mounting Hole Spacing - Limit Switch
0.75 in
Limit Switch Style
General Purpose Limit Switch
Head Material
zamak
Certification
CCC || CSA || UL
Special Features
vertical approach, 1 direction
Actuation Type
on end
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Short Circuit Protection
10 A cartridge fuse gG
Mechanical Durability
15000000 cycles
Contact Action
snap action
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Min. Actuation Velocity Horizontal
0.5 m/s
Head Type
plunger head
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Maximum
158 Degrees F
Number of Mounting Holes
2
Mounting Hole Horizontal Center to Center Distance
19 mm
Operating Torque - Maximum
1.9 in-lb
Mounting Style
Surface
Operating Force - Maximum
15 N
Directional Movement
Linear
Operating Temperature - Minimum
-13 Degrees F
Boot Sealed Actuator
No Boot Included
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Number Of Poles
2
Type Of Operator
spring return plunger metal

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.39 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, Mounting - Limit Switch Surface
