  8. Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

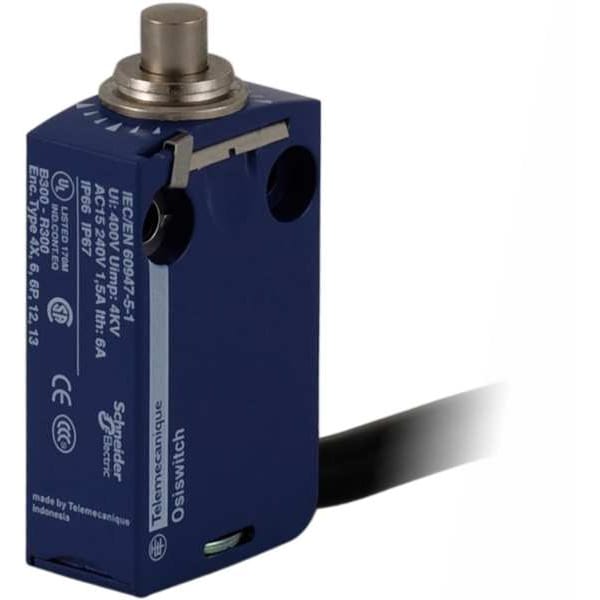

Telemecanique Sensors Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top XCMD2110L1 - main
Shop TELEMECANIQUE SENSORS

Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

  • Mfr # XCMD2110L1

  • Zoro # G1272275

product price:  $82.39
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCMD2110L1
Zoro #
G1272275
UPC #
785901269823
Country of Origin
Indonesia

Dimensions

Height
1.97"
Actuator Length
0.39"
Actuator Length - Limit Switch
0.39 in
Width
1.18"
Body Width - Limit Switch
1.18 in
Body Depth - Limit Switch
0.63 in
Body Height - Limit Switch
1.97 in
Depth
0.63"
Cable Length
1 m
Body Height
1.97 in
Overall Depth
0.63 in
Mounting Hole Diameter
0.17 in
Body Width
1.18 in
Overall Width
1.18 in
Body Depth
0.63 in
Manufacturer Warranty Length
18 mo
Overall Height
1.97 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
DC Contact Rating - Limit Switch
6A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
AC Contact Rating
1.5 A @ 240 V
Basic Actuator Style (Limit Switch)
Plunger
Actuator Style (Limit Switch)
Plunger
Wiring Entry
Plug-In Cable
Stem Thread - Limit Switch
No Stem
Mounting Hole - Limit Switch
(2) 0.16 in dia
Actuator Location
Top
Operating Force
1.9 in-lb
Mounting Hole Spacing - Limit Switch
0.79 in
DC Contact Rating
0.1 A @ 250 V
Travel
0.20 in
Voltage Rating
240VAC/DC
Movement
Vertical
Boot Sealed Actuator - Limit Switch
No
Actuator Style
Plunger
Contact Form
1NO/1NC
Series
XCMD
Body Style (Limit Switch)
Miniature
Operating Temp. Range
-13 Degrees to 158 Degrees F
Body Material
Zamak
Electrical Connection
Removable Cable Connector
Boot Sealed Actuator (Limit Switch)
No
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Arm Material
Metal
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
Amps
6
IP Rating
IP66, IP67, IP68
Limit Switch Style
General Purpose Limit Switch
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Location (Limit Switch)
Top
Contact Form - Limit Switch
1NC/1NO
Special Features
vertical approach, 1 direction
Certification
CSA || UL || CCC
Head Material
zamak
Actuation Type
on end
Contact Action
snap action
Short Circuit Protection
6 A cartridge fuse gG
Mechanical Durability
10000000 cycles
Min. Actuation Velocity Horizontal
0.5 m/s
Weight
0.18 kg
Shock Resistance
25 gn 18 ms IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Head Type
plunger head
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Type Of Operator
spring return plunger metal
Number Of Poles
2
Mounting Style
Surface
Operating Force - Maximum
8.5 N
Number of Mounting Holes
2
Operating Temperature - Minimum
-13 Degrees F
Mounting Hole Horizontal Center to Center Distance
20 mm
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Torque - Maximum
1.9 in-lb
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Boot Sealed Actuator
No Boot Included
Directional Movement
Linear

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 6A @ 240V, DC Contact Rating - Limit Switch 6A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.39 in, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.18 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
