  8. Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

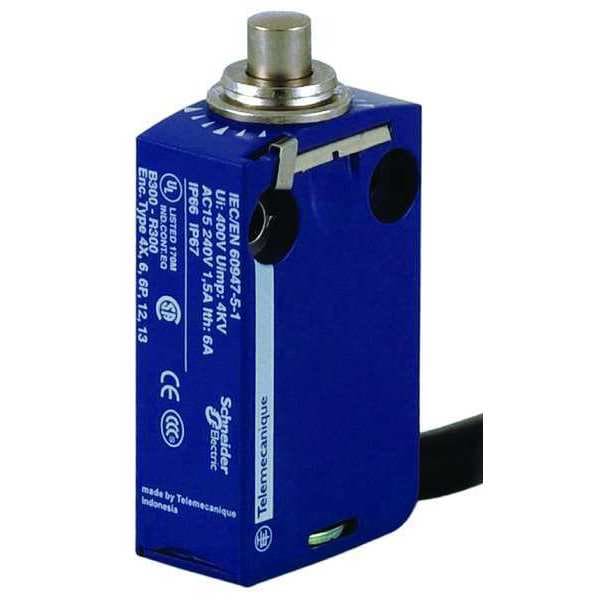

Telemecanique Sensors Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top XCMD2110L5 - main

Limit Switch, Plunger, 1NC/1NO, 6A at 240V AC, Actuator Location: Top

  • Mfr # XCMD2110L5

  • Zoro # G6411876

product price:  $95.29
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCMD2110L5
Zoro #
G6411876
UPC #
785901469254
Country of Origin
Indonesia

Dimensions

Actuator Length - Limit Switch
0.39 in
Height
1.97"
Actuator Length
0.39"
Body Depth - Limit Switch
0.63 in
Body Height - Limit Switch
1.97 in
Width
1.18"
Depth
0.63"
Body Width - Limit Switch
1.18 in
Cable Length
5 m
Body Height
1.97 in
Body Depth
0.63 in
Overall Height
1.97 in
Mounting Hole Diameter
0.17 in
Overall Width
1.18 in
Manufacturer Warranty Length
18 mo
Overall Depth
0.63 in
Body Width
1.18 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
6A at 240V
DC Contact Rating - Limit Switch
6A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Body Material
Zinc
Limit Switch Style
General Purpose Limit Switch
DC Contact Rating
6A at 240V
Stem Thread - Limit Switch
No Stem
Arm Material
Metal
Contact Form - Limit Switch
1NC/1NO
Operating Force
1.9 in-lb
Operating Temp. Range
-13 Degrees to 158 Degrees F
IP Rating
68
Actuator Location (Limit Switch)
Top
NEMA Rating
1, 12, 13, 2, 4, 6, 6P
Voltage Rating
240VAC/DC
Amps
6
Contact Form
1NC/1NO
Travel
0.20 in
Actuator Style (Limit Switch)
Plunger
Boot Sealed Actuator - Limit Switch
No
Actuator Style
Plunger
Movement
Vertical
Electrical Connection
5m Cable, 5 Wire
Wiring Entry
Plug-In Cable
Boot Sealed Actuator (Limit Switch)
No
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Series
XCMD
Mounting Hole Spacing - Limit Switch
0.79 in
Actuator Location
Top
Standards
CE, CSA, UL
Mounting Hole - Limit Switch
(2) 0.16 in dia
Body Style (Limit Switch)
Miniature
AC Contact Rating
6A at 240V
Basic Actuator Style (Limit Switch)
Plunger
Special Features
vertical approach, 1 direction
Certification
UL || CSA
Head Material
zamak
Head Type
plunger head
Min. Actuation Velocity Horizontal
0.5 m/s
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Actuation Type
on end
Electrical Durability
5000000 cycles, DC-13, 120 V, 1 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 3 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 2 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Mechanical Durability
10000000 cycles
Short Circuit Protection
6 A cartridge fuse gG
Shock Resistance
25 gn 18 ms IEC 60068-2-27
Contact Action
snap action
Mounting Style
Surface
Boot Sealed Actuator
No Boot Included
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Operating Force - Maximum
8.5 N
Operating Torque - Maximum
1.9 in-lb
Resistance Properties
Shock Resistant, Vibration Resistant
Mounting Hole Horizontal Center to Center Distance
20 mm
Number of Mounting Holes
2
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Directional Movement
Linear
Number Of Poles
2
Type Of Operator
spring return plunger metal

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 6A @ 240V, DC Contact Rating - Limit Switch 6A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.39 in, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.18 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6, 6P
