  15. Limit Switch, Plunger, 2NC/2NO, 5A @ 240V AC, Actuator Location: Top

This item is Discontinued.

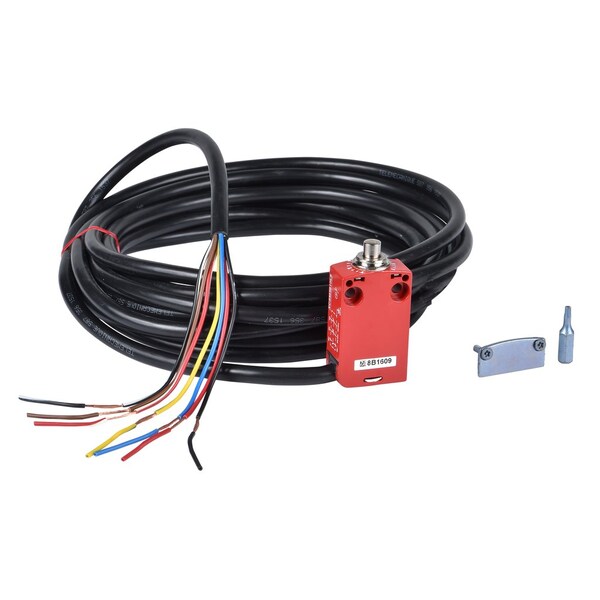

Telemecanique Sensors Limit Switch, Plunger, 2NC/2NO, 5A @ 240V AC, Actuator Location: Top XCSM4110L2

Limit Switch, Plunger, 2NC/2NO, 5A @ 240V AC, Actuator Location: Top (Discontinued)

  • Mfr # XCSM4110L2
  • Zoro # G0835801
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCSM4110L2
Zoro #
G0835801
UPC #
785901590385
Country of Origin
Indonesia

Dimensions

Body Height - Limit Switch
60mm
Width
30 mm
Cable Length
2 m
Body Depth - Limit Switch
16 mm

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
5A @ 240V
Operating Temp. Range
-25-70 °C
Electrical Connection
pre-cabled
IP Rating
IP66 conforming to IEC 60529 || IP67 conforming to IEC 60529 || IP68 conforming to IEC 60529
Standards
EN/IEC 60947-5-1 || EN/IEC 60204-1 || CSA C22.2 No 14 || EN 1088 || UL 508
Head Material
zamak
Operating Force
8.5 N
Series
XCSM
Certification
CSA || UL
Body Material
zamak
Mechanical Durability
10000000 cycles
Min. Actuation Velocity Horizontal
0.5 m/s
Weight
0.165 kg
Short Circuit Protection
6 A cartridge fuse gG (gl)
Contact Action
snap action
Shock Resistance
25 gn 18 ms IEC 60068-2-27
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Head Type
plunger head
Number Of Poles
4
Type Of Operator
metal end plunger
Actuator Material
Metal

Description

Safety Interlock Switch, Series XCSM
