  8. Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

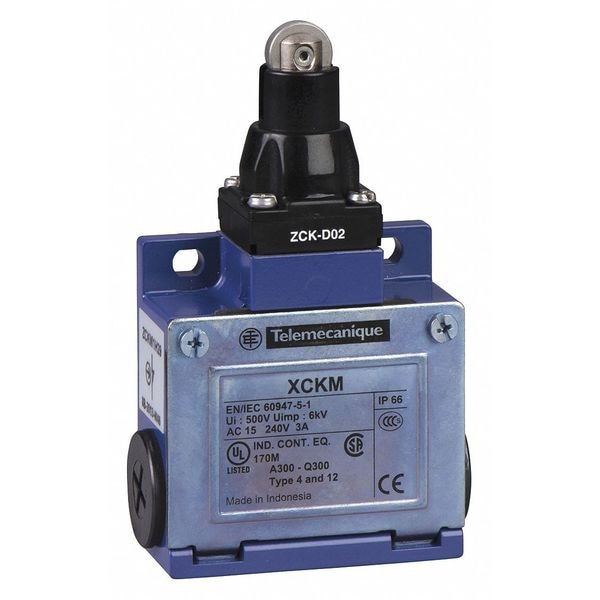

Telemecanique Sensors Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKM102H7 - main

Limit Switch, Plunger, Roller, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKM102H7

  • Zoro # G0462025

product price:  $127.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKM102H7
Zoro #
G0462025
UPC #
785901240389
Country of Origin
France

Dimensions

Depth
1.18"
Body Width - Limit Switch
2.52 in
Width
2.52"
Actuator Length - Limit Switch
1.71 in
Actuator Length
1.71"
Height
2.50"
Body Height - Limit Switch
2.48 in
Body Depth - Limit Switch
1.18 in
Mounting Hole Diameter
0.2 in
Overall Height
2.52 in
Overall Width
2.52 in
Body Width
2.52 in
Manufacturer Warranty Length
18 mo
Body Height
4.25 in
Overall Depth
1.18 in
Body Depth
1.18 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Stem Thread - Limit Switch
No Stem
Boot Sealed Actuator - Limit Switch
No
Limit Switch Style
General Purpose Limit Switch
Actuator Location (Limit Switch)
Top
Voltage Rating
240VAC/DC
Electrical Connection
Screw Clamp Terminals
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Movement
Horizontal
Mounting Hole - Limit Switch
(2) 0.20 in dia
Amps
10
IP Rating
IP66
Wiring Entry
1/2 in NPT
Standards
CE, CSA, UL Listed
NEMA Rating
1, 12, 13, 2, 4
DC Contact Rating
0.27 A @ 250 V
Contact Form
1NO/1NC
Basic Actuator Style (Limit Switch)
Plunger
Series
XCKM
Travel
0.32 in
AC Contact Rating
3 A @ 240 V
Contact Form - Limit Switch
1NC/1NO
Body Material
Zamak
Actuator Style (Limit Switch)
Plunger, Roller
Boot Sealed Actuator (Limit Switch)
No
Actuator Location
Top
Mounting Hole Spacing - Limit Switch
1.61 in
Actuator Style
Roller Plunger
Operating Force
2.7 in-lb
Operating Temp. Range
-13 Degrees to 158 Degrees F
Body Style (Limit Switch)
Miniature
Special Features
lateral approach, 2 directions
Certification
CSA || UL || CCC
Contact Action
snap action
Min. Actuation Velocity Horizontal
0.5 m/s
Short Circuit Protection
10 A cartridge fuse gG
Shock Resistance
50 gn 11 ms EN/IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
25 gn 10-500 Hz)EN/IEC 60068-2-6
Mechanical Durability
20000000 cycles
Actuation Type
by 30° cam
Head Type
plunger head
Number Of Poles
2
Type Of Operator
spring return roller plunger metal
Operating Temperature - Maximum
158 Degrees F
Operating Force - Maximum
12 N
Mounting Style
Surface
Directional Movement
Linear
Mounting Hole Horizontal Center to Center Distance
41 mm
Number of Mounting Holes
2
Operating Temperature - Minimum
-13 Degrees F
Operating Torque - Maximum
2.7 in-lb
NEMA Enclosure Rating
1, 12, 13, 2, 4
Boot Sealed Actuator
No Boot Included
Resistance Properties
Shock Resistant, Vibration Resistant

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.71 in, Body Height - Limit Switch 2.48 in, Body Width - Limit Switch 2.52 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4
