  15. Limit Switch, Plunger, Roller, 1NC/1NO, 3A at 240V AC, Actuator Location: Top

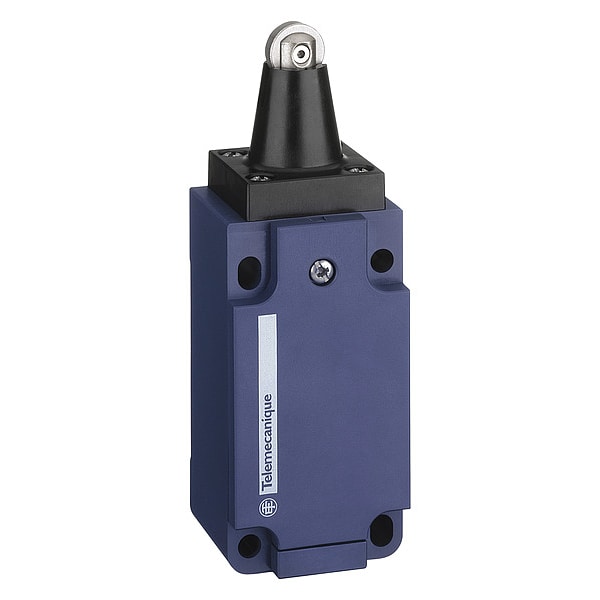

Telemecanique Sensors Limit Switch, Plunger, Roller, 1NC/1NO, 3A at 240V AC, Actuator Location: Top XCKS102H7 - main

Limit Switch, Plunger, Roller, 1NC/1NO, 3A at 240V AC, Actuator Location: Top

  • Mfr # XCKS102H7

  • Zoro # G0197875

product price: $63.25
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKS102H7
Zoro #
G0197875
UPC #
785901712985
Country of Origin
Indonesia

Dimensions

Body Width - Limit Switch
1.57 in
Roller Dia.
0.51 in
Body Depth - Limit Switch
37 mm
Body Height - Limit Switch
117 mm
Roller Width
0.16 in
Width
40 mm
Overall Height
4.61 in
Body Width
1.57 in
Roller Diameter
0.51 in
Body Depth
1.46 in
Overall Width
1.57 in
Overall Depth
1.46 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Actuator Location
Top
Wiring Entry
1/2 in NPT
Head Material
plastic
Actuator Style
Roller Plunger
Operating Force
4.49 lb
Body Material
Plastic
AC Contact Rating
3 A @ 240 V
Movement
Angular
Electrical Connection
Screw Terminals
Body Style (Limit Switch)
fixed
Special Features
2 directions, Lateral approach
Contact Form
1NC/1NO
Standards
CENELEC EN 50041, CSA C22.2 No 14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508
Certification
CCC, CSA, UL
Series
XCKS
Roller Material
Steel
IP Rating
66, 67
Contact Form - Limit Switch
1NC/1NO
Operating Temp. Range
-13 Degrees F to 158 Degrees F
DC Contact Rating
0.27 A @ 250 V
Shock Resistance
40 gn 11 ms IEC 60068-2-27
Mechanical Durability
15000000 cycles
Weight
0.133 kg
Short Circuit Protection
10 A cartridge fuse gG
Contact Action
snap action
Actuation Type
by 30° cam
Head Type
plunger head
Electrical Durability
5000000 cycles, DC-13, inductive, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, inductive, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Min. Actuation Velocity Horizontal
0.5 m/s
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Maximum
158 Degrees F
Operating Force - Maximum
12 N
Mounting Style
Surface
Operating Temperature - Minimum
-13 Degrees F
Directional Movement
Linear
Number Of Poles
2
Type Of Operator
spring return roller plunger metal

Description

Limit switch, Actuator Style - Limit Switch Plunger, Roller, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 3A @ 240V, Contact Form- Switches 1NC/1NO, Body Width - Limit Switch 1.57 in, Body Style - Limit Switch Miniature, Mounting - Limit Switch Surface, Electrical Connection Screw Clamp Terminals, IP Rating IP66, IP67, Special Features 2 directions, Lateral approach
