  8. Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

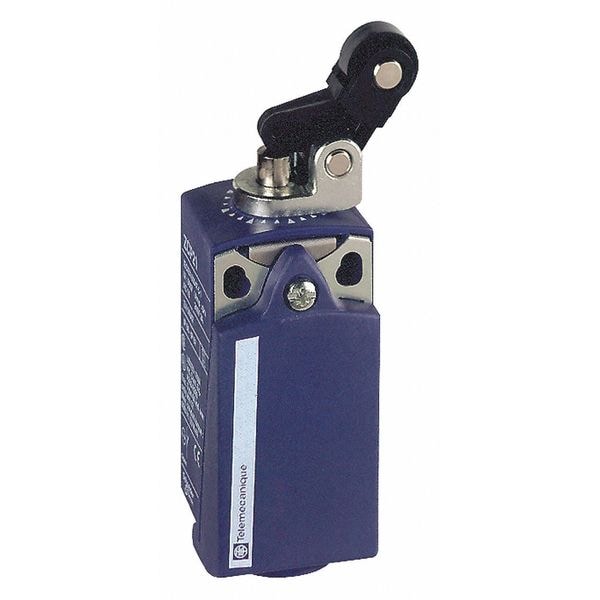

Telemecanique Sensors Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 240V AC, Actuator Location: Top XCKP2127N12 - main

Limit Switch, Plunger, Roller Lever, 1NC/1NO, 10A at 240V AC, Actuator Location: Top

  • Mfr # XCKP2127N12

  • Zoro # G1086687

product price:  $103.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKP2127N12
Zoro #
G1086687
UPC #
785901269625
Country of Origin
France

Dimensions

Height
2.56"
Body Depth - Limit Switch
1.18 in
Roller Width
0.22 in
Depth
1.18"
Body Height - Limit Switch
2.56 in
Actuator Length - Limit Switch
0.87 in
Width
1.22"
Body Width - Limit Switch
1.22 in
Roller Dia.
0.55 in
Actuator Length
0.87"
Overall Depth
1.26 in
Body Height
2.56 in
Overall Width
1.21 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
0.17 in
Roller Diameter
0.55 in
Overall Height
3.12 in
Body Depth
1.2 in
Body Width
1.21 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 240V
DC Contact Rating - Limit Switch
10A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Standards
CCC, CSA, CSA C22.2 No.14, EN 60204-1, EN 60947-5-1, IEC 60204-1, IEC 60947-5-1, UL 508, UL Listed
NEMA Rating
1, 12, 13, 2, 4, 6
Operating Temp. Range
-13 Degrees to 158 Degrees F
Series
XCKP
Contact Form
1NO/1NC
Roller Material
Thermoplastic
Stem Thread - Limit Switch
No Stem
Mounting Hole Spacing - Limit Switch
0.75 in
Electrical Connection
Screw Clamp Terminals
Movement
One Way, Vertical
Wiring Entry
1/2 in NPT
Body Style (Limit Switch)
Miniature
Arm Material
Plastic
Amps
10
Body Material
plastic
Boot Sealed Actuator (Limit Switch)
No
Limit Switch Style
General Purpose Limit Switch
Basic Actuator Style (Limit Switch)
Plunger
Mounting Hole - Limit Switch
(2) 0.17 in dia
Contact Form - Limit Switch
1NC/1NO
Boot Sealed Actuator - Limit Switch
No
Actuator Style (Limit Switch)
Plunger, Roller Lever
IP Rating
IP66, IP67
Operating Force
1.3 in-lb
Travel
0.63 in
Voltage Rating
240VAC/DC
Actuator Location
Top
AC Contact Rating
10 A @ 240 V
Actuator Style
Roller Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Location (Limit Switch)
Top
DC Contact Rating
0.27 A @ 250 V
Head Material
zamak
Special Features
vertical approach, 1 direction
Certification
UL || CCC || CSA
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Contact Action
snap action
Head Type
plunger head
Min. Actuation Velocity Horizontal
1 m/s
Mechanical Durability
15000000 cycles
Actuation Type
by 30° cam
Short Circuit Protection
10 A cartridge fuse gG
Operating Temperature - Minimum
-13 Degrees F
Boot Sealed Actuator
No Boot Included
Operating Torque - Maximum
1.3 in-lb
Mounting Hole Horizontal Center to Center Distance
19 mm
Operating Temperature - Maximum
158 Degrees F
Resistance Properties
Shock Resistant, Vibration Resistant
Directional Movement
Linear
Operating Force - Maximum
6 N
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Number of Mounting Holes
2
Mounting Style
Surface
Number Of Poles
2
Type Of Operator
spring return roller lever plunger thermoplastic

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller Lever, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 240V, DC Contact Rating - Limit Switch 10A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.87 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
