  8. Limit Switch, Plunger, Roller Lever, 1NC/1NO, 3A at 240V AC, Actuator Location: Top

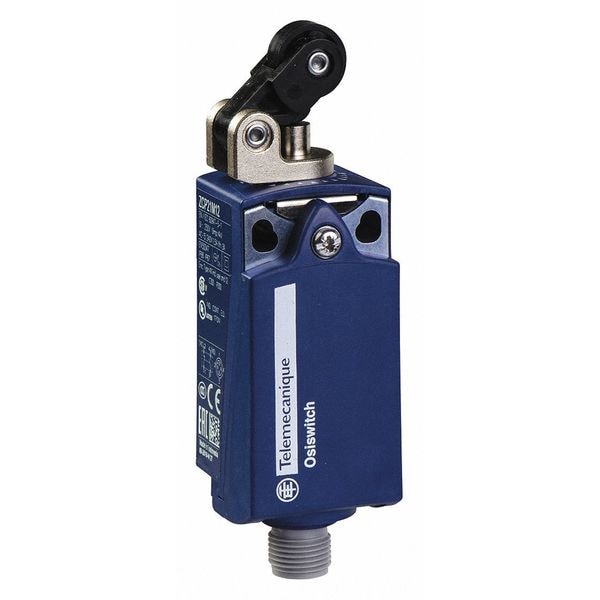

Telemecanique Sensors Limit Switch, Plunger, Roller Lever, 1NC/1NO, 3A at 240V AC, Actuator Location: Top XCKP2121M12 - main

Limit Switch, Plunger, Roller Lever, 1NC/1NO, 3A at 240V AC, Actuator Location: Top

  • Mfr # XCKP2121M12

  • Zoro # G2912567

product price:  $118.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XCKP2121M12
Zoro #
G2912567
UPC #
785901931331
Country of Origin
France

Dimensions

Width
1.22"
Body Width - Limit Switch
1.22 in
Roller Width
0.22 in
Roller Dia.
0.55 in
Body Height - Limit Switch
2.56 in
Actuator Length - Limit Switch
0.8 in
Height
2.56"
Depth
1.18"
Body Depth - Limit Switch
1.18 in
Actuator Length
0.8 in
Manufacturer Warranty Length
18 mo
Mounting Hole Diameter
0.17 in
Body Depth
1.18 in
Roller Diameter
0.55 in
Overall Width
1.22 in
Body Height
2.56 in
Overall Height
2.56 in
Body Width
1.22 in
Overall Depth
1.18 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller Lever
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
3A at 240V
DC Contact Rating - Limit Switch
3A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Boot Sealed Actuator - Limit Switch
No
DC Contact Rating
3 A @ 240 V
Electrical Connection
4-Pin M12 Connector
Operating Force
1.3 in-lb
Standards
CE, CSA, UL Listed
Amps
3
IP Rating
IP66, IP67
NEMA Rating
1, 12, 13, 2, 4, 6
Body Style (Limit Switch)
Miniature
Actuator Location (Limit Switch)
Top
Contact Form
1NO/1NC
Voltage Rating
240VAC/DC
Operating Temp. Range
-13 Degrees to 158 Degrees F
Boot Sealed Actuator (Limit Switch)
No
AC Contact Rating
3 A @ 240 V
Contact Form - Limit Switch
1NC/1NO
Travel
0.63 in
Limit Switch Style
General Purpose Limit Switch
Mounting Hole Spacing - Limit Switch
0.75 in
Series
XCKP
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Body Material
plastic
Movement
Horizontal, One Way
Stem Thread - Limit Switch
No Stem
Basic Actuator Style (Limit Switch)
Plunger
Actuator Style (Limit Switch)
Plunger, Roller Lever
Actuator Style
Roller Plunger
Roller Material
Thermoplastic
Wiring Entry
Connector
Actuator Location
Top
Mounting Hole - Limit Switch
(2) 0.17 in dia
Arm Material
Plastic
Head Material
zamak
Certification
UL || CCC || CSA
Special Features
lateral approach, 1 direction
Weight
0.11 kg
Mechanical Durability
15000000 cycles
Short Circuit Protection
4 A cartridge fuse gG
Head Type
plunger head
Min. Actuation Velocity Horizontal
1 m/s
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Electrical Durability
5000000 cycles, DC-13, 120 V, 4 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Actuation Type
by 30° cam
Contact Action
snap action
Type Of Operator
spring return roller lever plunger thermoplastic
Number Of Poles
2
Operating Temperature - Minimum
-13 Degrees F
Operating Force - Maximum
6 N
Mounting Style
Surface
Resistance Properties
Shock Resistant, Vibration Resistant
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Operating Torque - Maximum
1.3 in-lb
Directional Movement
Linear
Mounting Hole Horizontal Center to Center Distance
19 mm
Number of Mounting Holes
2
Boot Sealed Actuator
No Boot Included

Description

Limit Switch, Actuator Style - Limit Switch Plunger, Roller Lever, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 3A @ 240V, DC Contact Rating - Limit Switch 3A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 0.8 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
