  15. Limit Switch, Plunger, Roller, SPDT, 10A @ 240V AC, Actuator Location: Top

This item is Discontinued.

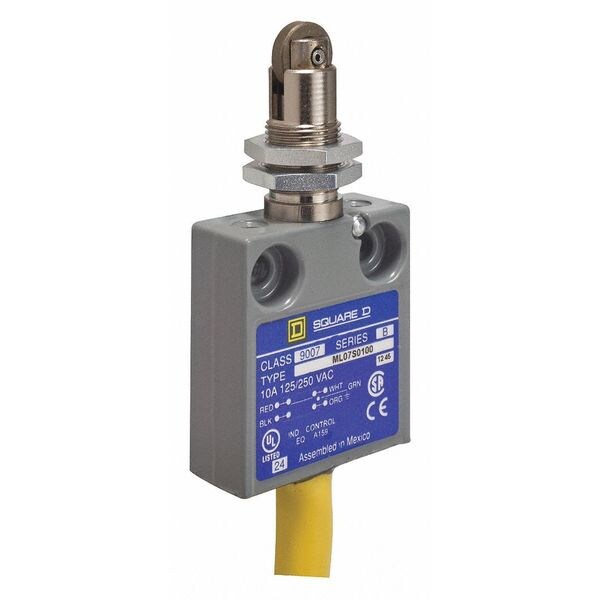

Telemecanique Sensors Limit Switch, Plunger, Roller, SPDT, 10A @ 240V AC, Actuator Location: Top 9007ML07S0100

Limit Switch, Plunger, Roller, SPDT, 10A @ 240V AC, Actuator Location: Top (Discontinued)

  • Mfr # 9007ML07S0100
  • Zoro # G0561185
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007ML07S0100
Zoro #
G0561185
UPC #
785901493457
Country of Origin
Mexico

Dimensions

Body Depth - Limit Switch
0.62 in
Body Height - Limit Switch
1.75 in
Width
1.56 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger, Roller
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A @ 240V
Amps
10
Contact Form
Form Z
Contact Material
silver contacts
Series
9007MS/ML
Movement
linear
Standards
E78403 || LR 25490 Class 32 11 03; CE || UL || CSA
Certification
UL || CE || CSA
Electrical Connection
pre-wired cable bottom
NEMA Rating
NEMA 1 Nema type 250 || NEMA 2 Nema type 250 || NEMA 4 Nema type 250 || NEMA 6 Nema type 250 || NEMA 6P Nema type 250
Body Style (Limit Switch)
fixed
IP Rating
IP67 conforming to IEC 60529
Operating Temp. Range
-40-220 °F
Special Features
lateral approach, 2 directions
Body Material
cast zinc, metal
Actuation Type
by 30° cam
Vibration Resistance
10 gn 75-1200 Hz)IEC 60068-2-6
Electrical Durability
100000 cycles
Contact Action
snap action
Weight
1.2 lb(US)
Mechanical Durability
10000000 cycles
Shock Resistance
35 gn 9 ms IEC 60068-2-27
Head Type
plunger head
Number Of Poles
1
Type Of Operator
spring return parallel roller plunger steel bushing mounted

Description

Limit Switch 240Vac 10Amp Ml +Options
