  8. Limit Switch, Roller Lever, Rotary, 1NC/1NO, 4A at 240V AC, Actuator Location: Side

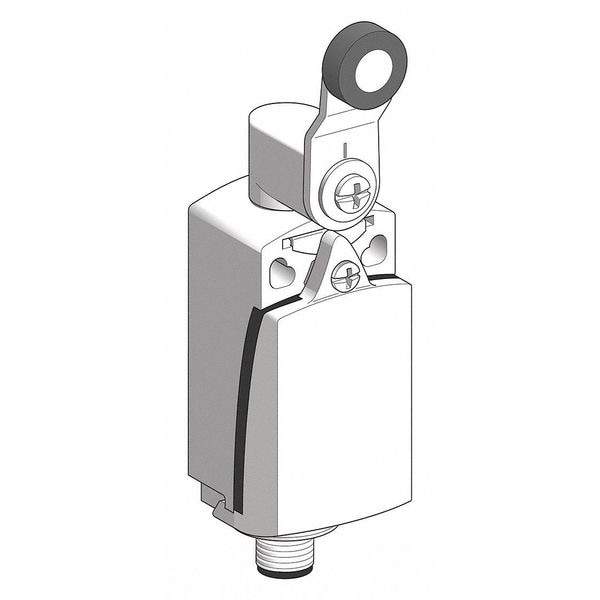

Telemecanique Sensors Limit Switch, Roller Lever, Rotary, 1NC/1NO, 4A at 240V AC, Actuator Location: Side XCKD2118M12 - main
Shop TELEMECANIQUE SENSORS

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 4A at 240V AC, Actuator Location: Side

  • Mfr # XCKD2118M12

  • Zoro # G0475194

product price:  $107.99
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 240V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCKD2118M12
Zoro #
G0475194
UPC #
785901952619
Country of Origin
France

Dimensions

Roller Width
0.22 in
Height
2.56"
Roller Dia.
0.75 in
Depth
1.18"
Body Width - Limit Switch
1.22 in
Width
1.22"
Body Depth - Limit Switch
1.18 in
Body Height - Limit Switch
2.56 in
Actuator Length - Limit Switch
1.3 in
Actuator Length
1.3 in
Manufacturer Warranty Length
18 mo
Overall Height
2.56 in
Body Width
1.22 in
Mounting Hole Diameter
0.17 in
Overall Width
1.22 in
Overall Depth
1.18 in
Roller Diameter
0.75 in
Body Height
2.56 in
Body Depth
1.18 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
4A at 240V
DC Contact Rating - Limit Switch
4A at 240V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
NEMA Rating
1, 12, 13, 2, 4, 6
Body Material
Zamak
Contact Form
1NO/1NC
Mounting Hole - Limit Switch
(2) 0.17 in dia
Basic Actuator Style (Limit Switch)
Rotary
Actuator Location
Side
Voltage Rating
240VAC/DC
Mounting Hole Spacing - Limit Switch
0.75 in
Contact Form - Limit Switch
1NC/1NO
Body Style (Limit Switch)
Miniature
Electrical Connection
5-Pin M12 Connector
Boot Sealed Actuator - Limit Switch
No
Actuator Style
Roller Lever Plunger
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
IP Rating
IP67
DC Contact Rating
4 A @ 240 V
Travel
Total Travel 90 Degrees
Arm Material
Metal
Actuator Style (Limit Switch)
Rotary, Roller Lever
AC Contact Rating
4 A @ 240 V
Boot Sealed Actuator (Limit Switch)
No
Actuator Location (Limit Switch)
Side
Limit Switch Style
General Purpose Limit Switch
Operating Temp. Range
-13 Degrees to 158 Degrees F
Stem Thread - Limit Switch
No Stem
Amps
4
Wiring Entry
Connector
Roller Material
Thermoplastic
Standards
CE, CSA, UL Listed
Movement
CCW, CW
Series
XCKD
Operating Force
0.9 in-lb
Head Material
zamak
Special Features
lateral approach, 2 directions
Certification
UL || CSA || CCC
Vibration Resistance
25 gn 10-500 Hz)IEC 60068-2-6
Contact Action
snap action
Actuation Type
by 30° cam
Head Type
rotary head
Electrical Durability
5000000 cycles, DC-13, 24 V, 10 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C || 5000000 cycles, DC-13, 48 V, 7 W 60 cyc/mn 0.5 IEC 60947-5-1 appendix C
Min. Actuation Velocity Horizontal
1.5 m/s
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Short Circuit Protection
4 A cartridge fuse gG
Weight
0.22 kg
Mechanical Durability
10000000 cycles
Total Travel
90 Degrees
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6
Operating Temperature - Maximum
158 Degrees F
Operating Torque - Maximum
0.9 in-lb
Number of Mounting Holes
2
Mounting Style
Surface
Directional Movement
CCW/CW
Resistance Properties
Shock Resistant, Vibration Resistant
Boot Sealed Actuator
No Boot Included
Operating Temperature - Minimum
-13 Degrees F
Mounting Hole Horizontal Center to Center Distance
22 mm
Type Of Operator
spring return roller lever thermoplastic
Number Of Poles
2

Description

Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 4A @ 240V, DC Contact Rating - Limit Switch 4A @ 240V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.3 in, Body Height - Limit Switch 2.56 in, Body Width - Limit Switch 1.22 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 2, 4, 6
