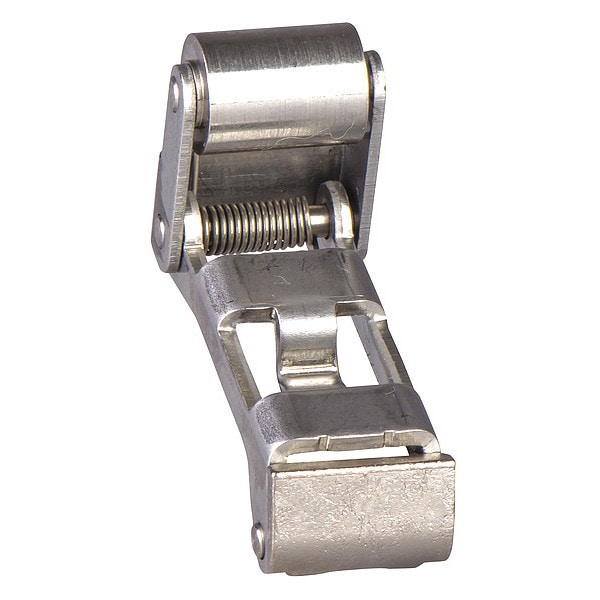

Telemecanique Sensors Lmt Swtch Hd, Rllr Lvr Plngr, Tp, 1.37 In, H ZCE24 - main

Lmt Swtch Hd, Rllr Lvr Plngr, Tp, 1.37 In, H

  • Mfr # ZCE24

  • Zoro # G6468165

product price:  $46.19
/ea

Key Features

Actuator Style
Roller Lever Plunger
Actuator Location
Top
Actuator Length
1.77 in
For Use With
Mfr. No. XCKD, XCKP, XCKT, XCMD
Actuator Type
Roller Lever Plunger
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ZCE24
Zoro #
G6468165
UPC #
785901577737
Country of Origin
Indonesia

Dimensions

Actuator Length
1.77 in
Arm Length
1.37 in
Arm Length - Maximum
1.37 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
Actuator Style
Roller Lever Plunger
Actuator Location
Top
For Use With
Mfr. No. XCKD, XCKP, XCKT, XCMD
Actuator Type
Roller Lever Plunger
Standards
EU RoHS, REACH
Operating Force
0.60 in.-lb
IP Rating
Not Rated
Action
Momentary
Includes Actuator
Actuator Included
Operating Temperature - Maximum
158 Degrees F
Compatible with Series
XCKD, XCKP, XCKT, XCMD
Operating Temperature - Minimum
-13 Degrees F
NEMA Enclosure Rating
Not Rated
Directional Movement
Linear
Type Of Operator
roller lever plunger spring return metal retractable)
Ambient Air Temperature For Storage
-40-70°C
Series Name
standard format
Movement Of Operating Head
linear
Device Short Name
ZCE
Product Or Component Type
limit switch head
Product Compatibility
XCKT || XCMD || XCKP || XCKD
Associated Body
ZCP29 || ZCD39 || ZCP26 || ZCMD69C12 || ZCD21M12 || ZCMD29L2 || ZCMD39L5 || ZCD27 || ZCMD29C12 || ZCT25G11 || ZCT28N12 || ZCMD21M12 || ZCP21M12 || ZCD28 || ZCMD61C12 || ZCT27N12 || ZCMD21C12 || ZCMD81L5 || ZCT27G11 || ZCT26P16 || ZCMD21L2 || ZCT25N12 || ZCP25 || ZCP29M12 || ZCT27P16 || ZCT21P16 || ZCD35 || ZCMD41L2 || ZCD29M12 || ZCMD25L5 || ZCMD21L08U78 || ZCT21G11 || ZCT28G11 || ZCP31 || ZCMD37L5 || ZCD29 || ZCT26N12 || ZCMD39L2 || ZCP21 || ZCT25P16 || ZCP37 || ZCMD61M12 || ZCD37 || ZCP39 || ZCMD25L2 || ZCMD37L2 || ZCP35 || ZCT26G11 || ZCD26 || ZCMD41L1 || ZCD25 || ZCMD29L1 || ZCMD39L1 || ZCP27 || ZCMD41L5 || ZCMD81L2 || ZCD31 || ZCMD37L1 || ZCMD21L1 || ZCMD29L5 || ZCMD25L1 || ZCMD21L5 || ZCT28P16 || ZCD21 || ZCP28 || ZCMD81L1 || ZCT21N12 || ZCMD21L08R12
Head Type
plunger head
Switch Actuation
by 30° cam
Positive Opening
with
Ambient Air Temperature For Operation
-25-70°C
Type Of Approach
lateral approach, 1 direction
Environmental Characteristic
standard environment

Description

Limit Switch Head, Actuator Style Roller Lever Plunger, Actuator Location Top, Actuator Length 1.77 in, Contact Form Not Applicable, Amps Not Applicable, Voltage Rating Not Applicable, Travel 1.18 in, Movement Horizontal, Operating Force 0.60 in.-lb, Operating Temp. -25 Degrees to 70 Degrees F, NEMA Rating Not Rated, IP Rating Not Rated, Standards EU RoHS, REACH, For Use With Mfr. No. XCKD, XCKP, XCKT, XCMD
