  15. Lmt Swtch Head, Push Rod Plngr, Top, .69 In

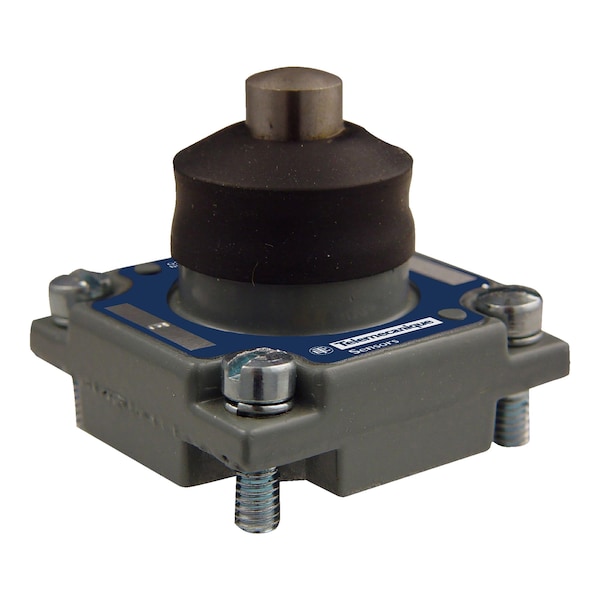

Telemecanique Sensors Lmt Swtch Head, Push Rod Plngr, Top, .69 In 9007E - main

Lmt Swtch Head, Push Rod Plngr, Top, .69 In

  • Mfr # 9007E

  • Zoro # G0723624

product price: $80.79
/ea
Free Shipping & Returns

Key Features

Actuator Style
Plunger
Actuator Location
Top
Actuator Length
0.69 in
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9007E
Zoro #
G0723624
UPC #
785901500827
Country of Origin
Mexico

Dimensions

Actuator Length
0.69 in
Manufacturer Warranty Length
18 mo

Details

Item
Limit Switch Head
Actuator Style
Plunger
Actuator Location
Top
For Use With
9007 Type C
NEMA Rating
13, 4, 6P
Movement
CW and CCW
Travel
0.25 in
IP Rating
IP67
Amps
10
Operating Force
3.0 in-lb
Operating Temp.
0 Degrees to 185 Degrees F
Description/Special Features
Momentary
Standards
CSA, UL Listed
Compatible with Series
9007C
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
0 Degrees F
NEMA Enclosure Rating
1, 12, 13, 2, 4, 6, 6P
Includes Actuator
Actuator Included
Total Travel
0.25 in
Operating Torque
3 in-lb
Directional Movement
Linear
Action
Momentary
Associated Lever
9007C
Product Or Component Type
limit switch head
Device Short Name
9007C
Associated Body
9007C
Head Type
plunger head
Switch Actuation
on end
Ambient Air Temperature For Operation
0-185°F
Type Of Approach
vertical approach, 1 direction
Ambient Air Temperature For Storage
0-185°F
Type Of Operator
spring return plunger stainless steel -
Positive Opening
without
Environmental Characteristic
standard environment
Product Compatibility
9007C
Movement Of Operating Head
linear
Series Name
heavy duty

Description

Limit Switch Head, Actuator Style Plunger, Actuator Location Top, Actuator Length 0.69 in, Contact Form Not Applicable, Amps 10, Voltage Rating Not Applicable, Travel 0.25 in, Movement CW and CCW, Operating Force 3.0 in-lb, Operating Temp. 0 Degrees to 185 Degrees F, NEMA Rating 13, 4, 6P, IP Rating IP67, Standards CSA, UL Listed, For Use With 9007 Type C
