Omron

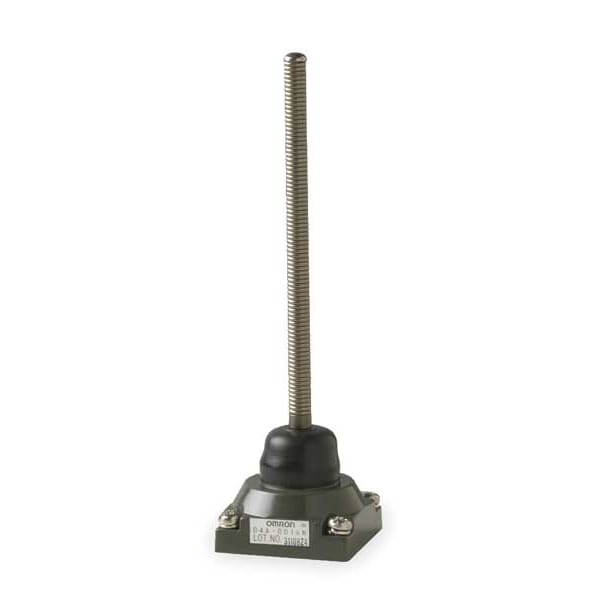

Limit Switch Head, Flxble Rod, Top, UL/CSA

original price: $112.39
14% off
new price: $96.29
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Actuator Style Coil Spring
  • Actuator Location Top
  • Contact Form Not Specified
  • For Use With Mfr. No. D4A1116N
  • NEMA Rating 12, 13, 3, 4, 4X, 6P
See all product information

Product Information

Dimensions

Arm Width 0.26 in
Arm Depth 4.19 in

Details

Item Limit Switch Head
Actuator Style Coil Spring
Actuator Location Top
Contact Form Not Specified
For Use With Mfr. No. D4A1116N
NEMA Rating 12, 13, 3, 4, 4X, 6P
Movement Omnidirectional
Voltage Rating Not Specified
Operating Force 1.47 N
IP Rating IP67
Operating Temp. -40 Degrees to 212 Degrees F
Travel Not Specified
Amps Not Specified
Description/Special Features Coil Spring
Standards CSA, UL Listed
Operating Temperature - Minimum -40 Degrees F
Compatible with Manufacturer Model Number D4A1116N
Operating Torque 52.04 in-lb
Arm Material Stainless Steel
Directional Movement Omnidirectional
Series D4A
Plunger Adjustability Fixed
Operating Temperature - Maximum 212 Degrees F
Compatible with Series D4A
Arm Adjustability Fixed
Action Maintained
NEMA Enclosure Rating 1, 12, 13, 2, 3, 4X, 5, 6P

Description

Limit Switch Head, Actuator Style Coil Spring, Actuator Location Top, Contact Form Not Specified, Amps Not Specified, Voltage Rating Not Specified, Travel Not Specified, Movement Omnidirectional, Operating Force 1.47 N, Operating Temp. -40 Degrees to 212 Degrees F, NEMA Rating 12, 13, 3, 4, 4X, 6P, IP Rating IP67, Standards CSA, UL Listed, For Use With Mfr. No. D4A1116N
