  11. Multimode Photoelectric Sensor, M8, Rectangular, PNP

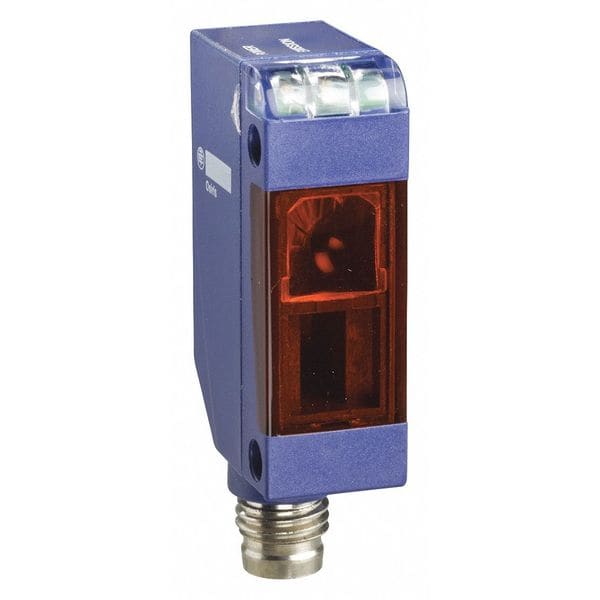

Telemecanique Sensors Multimode Photoelectric Sensor, M8, Rectangular, PNP XUM0APSAM8 - main

Multimode Photoelectric Sensor, M8, Rectangular, PNP

  • Mfr # XUM0APSAM8

  • Zoro # G0653899

product price: $129.99
/ea
Free Shipping & Returns

Key Features

Height
45 mm
Width
12 mm
Depth
20 mm
Material
plastic
Standards
CE, CSA Certified, UL Listed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUM0APSAM8
Zoro #
G0653899
UPC #
785901822332
Country of Origin
Indonesia

Dimensions

Height
45 mm
Width
12 mm
Depth
20 mm
Overall Height
45 mm
Overall Width
12 mm
Overall Depth
20 mm

Details

Item
Photoelectric Sensor
Material
plastic
Standards
CE, CSA Certified, UL Listed
Body Material
Plastic
Sensing Method
Multimode
Current Consumption
35 mA no-load
Response Time
2 msec
IP Rating
IP65, IP67
Electrical Connection
M8
Add On Output
with alarm output, 50 mA
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Wire Insulation Material
PVC
Enclosure Material
PBT
Maximum Delay First Up
100 ms
Switching Frequency
240 Hz
Series Name
general purpose multimode
Detection System
multimode
Emission
infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex
Sensor Design
miniature
Output Type
solid state
Maximum Sensing Distance
14 m thru beam || 4 m polarised reflex || 0.1 m diffuse with background suppression || 0.55 m diffuse
Sensor Name
XUM
Status Led
1 LED green)supply || 1 LED red)instability || 1 LED yellow)output state
Setting-Up
self-teaching
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Type Of Output Signal
discrete
Supply Circuit Type
DC
Electronic Sensor Type
photo-electric sensor
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Maximum Delay Recovery
2 ms
Ambient Air Temperature For Operation
-25-55°C
Maximum Voltage Drop
<1.5 V closed state)
Maximum Delay Response
2 ms
[Sn] Nominal Sensing Distance
3-3 m polarised reflex need reflector XUZC50 || 10-10 m thru beam need a transmitter XUM0AKSAM8T || 0.1-0.1 m diffuse with background suppression || 0.4-0.4 m diffuse
Lens Material
PMMA
Ambient Air Temperature For Storage
-40-70°C
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Includes Indicator Lights
Indicator Lights Included
Output Circuit Type
PNP
Electrical Installation Type
Direct Connector
Operating Temperature - Maximum
131 Degrees F
Number of Pins
4
Series
XUM
DC Voltage Rating
12-24V DC
Style
Rectangular
Operating Temperature - Minimum
-13 Degrees F
Sensing Distance - Maximum
14 m
Load Current - Maximum
100 mA
Output Circuit Number of Wires
3

Description

Photoelectric Sensor
