This item is Discontinued.

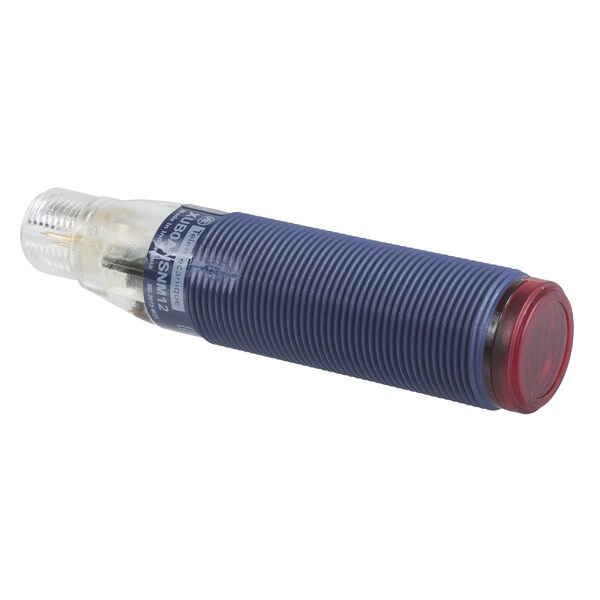

Telemecanique Sensors Photo-electric sensor-XUB-diffuse- XUB4ANBNM12

Photo-electric sensor-XUB-diffuse- (Discontinued)

  • Mfr # XUB4ANBNM12
  • Zoro # G600899346
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUB4ANBNM12
Zoro #
G600899346
UPC #
-
Country of Origin
Indonesia

Dimensions

Length
62 mm
Diameter
18 mm

Details

Item
Photo-electric sensor - XUB - diffuse -
Material
plastic
Electrical Connection
1 male connector M12, 4 pins
Current Consumption
35 mA no-load
Ambient Air Temperature For Operation
-25-55°C
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Sensor Name
XUB
Add On Output
without
Discrete Output Function
1 NC
Electronic Sensor Type
photo-electric sensor
Ip Degree Of Protection
IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529 || IP69K double insulation DIN 40050
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Discrete Output Type
NPN
Detection System
diffuse
Ambient Air Temperature For Storage
-40-70°C
Type Of Output Signal
discrete
Maximum Delay First Up
15 ms
Sensor Design
cylindrical M18
Supply Voltage Limits
10-36 V DC
Switching Frequency
<= 500 Hz
Enclosure Material
PBT
Status Led
1 LED yellow)output state
Emission
infrared diffuse
Maximum Sensing Distance
0.15 m diffuse
[Sn] Nominal Sensing Distance
0.1-0.1 m diffuse
Maximum Delay Recovery
1 ms
Wiring Technique
3-wire
Setting-Up
without sensitivity adjustment
Lens Material
PMMA
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Line Of Sight Type
axial
Output Type
solid state
Maximum Voltage Drop
<1.5 V closed state)
Series Name
general purpose single mode
Maximum Delay Response
1 ms
Supply Circuit Type
DC
Wire Insulation Material
PvR
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Product Certifications
CSA || CE || UL

Description

Photo-electric sensor - XUB - diffuse -
