This item is Discontinued.

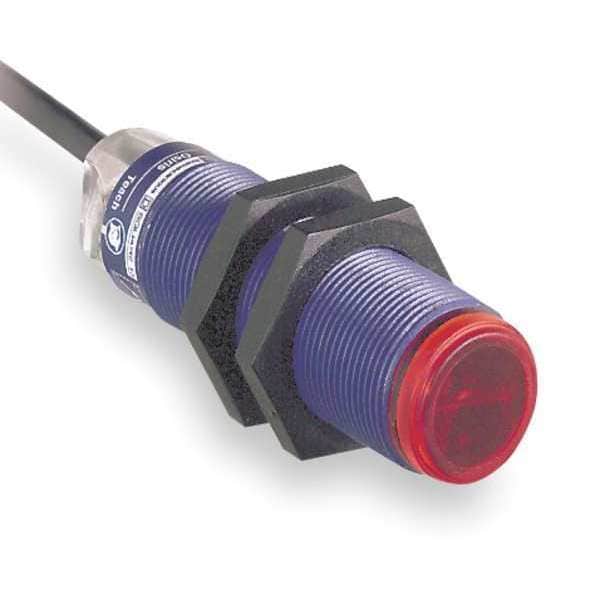

Telemecanique Sensors Photoelectric Sensor, Cylindrical, Diffuse XUB5APANL2

Photoelectric Sensor, Cylindrical, Diffuse (Discontinued)

  • Mfr # XUB5APANL2
  • Zoro # G4559721
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XUB5APANL2
Zoro #
G4559721
UPC #
785901909699
Country of Origin
Multiple

Dimensions

Width
1.73"
Depth
0.71"
Diameter - Cylindrical Photoelectric Sensor
18 mm
Length - Cylindrical Photoelectric Sensor
62 mm
Length
2.44"
Diameter
18mm
Overall Height
62 mm
Cable Length
2 m
Overall Diameter
18 mm
Sensor Diameter
18 mm

Details

Item
Photoelectric Sensor
Material
plastic
Shape
Cylindrical
Electrical Connection - Cylindrical Photoelectric Sensor
2m Cable
Electrical Connection
Bare Wire
Operating Mode - Photoelectric Sensor
Light On
NEMA Rating
Not Rated
Operation Mode
Light On
Response Time
1.0 msec
Standards
CE, CSA, IEC 60529, RoHS, UL Listed
Sensing Method - Cylindrical Photoelectric Sensor
Diffuse
Circuit Type - Cylindrical Photoelectric Sensor
PNP
Response Time (ms)
Less Than 1 ms
Sensing Method
Diffuse
Operating Temp. Range
-25 Degrees to 55 Degrees C
Power Requirement
12 to 24VDC
Body Material
PBT
Power Requirement - Cylindrical Photoelectric Sensor
12 to 24V DC
Max. Sensing Distance - Cylindrical Photoelectric Sensor
800 mm
Features
Overload Protection, PMMA Lens, Reverse Polarity Protection, Short Circuit Protection
IP Rating
IP65, IP67
Light Source
Infrared LED
Operating Frequency
500 Hz
Max. Load Current
100 mA
Current Consumption
35 mA no-load
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Lens Material
PMMA
Output Type
solid state
Ip Degree Of Protection
IP67 double insulation IEC 60529 || IP65 double insulation IEC 60529
Maximum Delay First Up
15 ms
Line Of Sight Type
axial
Product Certifications
UL || CSA || CE
Electronic Sensor Type
photo-electric sensor
Setting-Up
sensitivity adjustment
Wire Insulation Material
PvR
Add On Output
without
Enclosure Material
PBT
Sensor Name
XUB
Discrete Output Function
1 NO
Sensor Design
cylindrical M18
Supply Voltage Limits
10-36 V DC
Status Led
1 LED yellow)output state
Wiring Technique
3-wire
Switching Frequency
500 Hz
Ambient Air Temperature For Operation
-25-55°C
Ambient Air Temperature For Storage
-40-70°C
Discrete Output Type
PNP
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
[Sn] Nominal Sensing Distance
0.6-0.6 m diffuse
Maximum Sensing Distance
0.8 m diffuse
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Supply Circuit Type
DC
Maximum Voltage Drop
<1.5 V closed state)
Maximum Delay Recovery
1 ms
Detection System
diffuse
Emission
infrared diffuse
Series Name
general purpose single mode
Type Of Output Signal
discrete
Maximum Delay Response
1 ms
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Operating Mode
Light On
Series
XU
Output Circuit Contact Form
1NO
Style
Cylindrical
Orientation
Straight
Product Type
Photoelectric Sensor
Includes Indicator Lights
Indicator Lights Included
Output Circuit Type
PNP
Sensing Distance - Maximum
600 mm
NEMA Enclosure Rating
No Enclosure
Load Current - Maximum
100 mA
Electrical Installation Type
Prewired Cable
Operating Temperature - Minimum
-13 Degrees F
DC Voltage Rating
12-24V DC
Operating Temperature - Maximum
131 Degrees F

Description

Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Diffuse, Operating Mode - Photoelectric Sensor Light On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 12 to 24V DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor PNP, Max. Sensing Distance - Cylindrical Photoelectric Sensor 800 mm, Length - Cylindrical Photoelectric Sensor 62 mm
