This item is Discontinued.

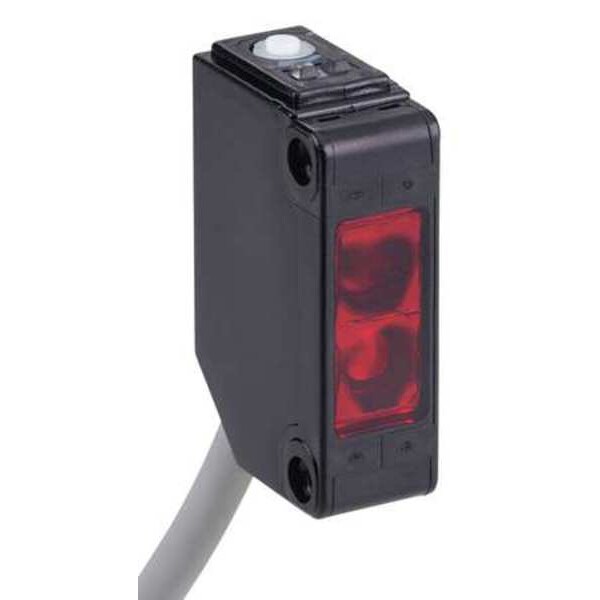

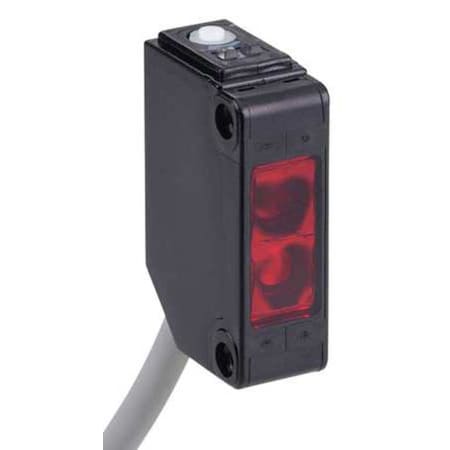

Telemecanique Sensors Photoelectric Sensor, Rectangl, Reflective XUM9ANCNL2

Photoelectric Sensor, Rectangl, Reflective (Discontinued)

  • Mfr # XUM9ANCNL2
  • Zoro # G4610505
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUM9ANCNL2
Zoro #
G4610505
UPC #
785901626879
Country of Origin
Unknown

Dimensions

Width
0.43"
Depth
0.79"
Height - Rectangular Photoelectric Sensor
31 mm
Length
1.22"
Width - Rectangular Photoelectric Sensor
11 mm
Depth - Rectangular Photoelectric Sensor
20 mm
Cable Length
2 m
Overall Height
31 mm
Overall Width
11 mm
Overall Depth
20 mm

Details

Item
Photoelectric Sensor
Sensing Method - Rectangular Photoelectric Sensor
Retroreflective
IP Rating
IP65, IP67
Circuit Type
NPN NO/NC
Power Requirement - Rectangular Photoelectric Sensor
12 to 24V DC
Output Circuit Type - Rectangular Photoelectric Sensor
NO/NC, NPN
Operating Mode - Photoelectric Sensor
Selectable Light On/Dark On
Max. Sensing Distance - Rectangular Photoelectric Sensor
5 m
Max. Load Current
100 mA
Electrical Connection - Rectangular Photoelectric Sensor
2m Cable
Operating Frequency
1,000 Hz
Electrical Connection
2m Cable
Operating Temp. Range
-30 Degrees to 60 Degrees C
Shape
Rectangular
Sensing Method
Retroreflective
Max. Sensing Distance
5m
Standards
CCC, CE, CSA, cUL, RoHS, UL Listed
Operation Mode
Selectable Light On/Dark On
Power Requirement
12 to 24VDC
Light Source
Red LED
Body Material
PBT
Features
Overload Protection, PMMA Lens, Reverse Polarity Protection, Short Circuit Protection
NEMA Rating
IP67
Response Time
1.0 msec
Switching Frequency
1 kHz
Style
Rectangular
Electrical Installation Type
Prewired Cable
Product Type
Photoelectric Sensor
Load Current - Maximum
100 mA
Output Circuit Contact Form
1NO/1NC
Operating Mode
Selectable Light On/Dark On
Output Circuit Type
NPN
Sensing Distance - Maximum
5 m

Description

Photoelectric Sensor, Operating Mode - Photoelectric Sensor Selectable Light On/Dark On
