  6. Polarized Retroreflective Photoelectric Sensor, Bare Wire, Straight, Cylindrical, Light On, SPST

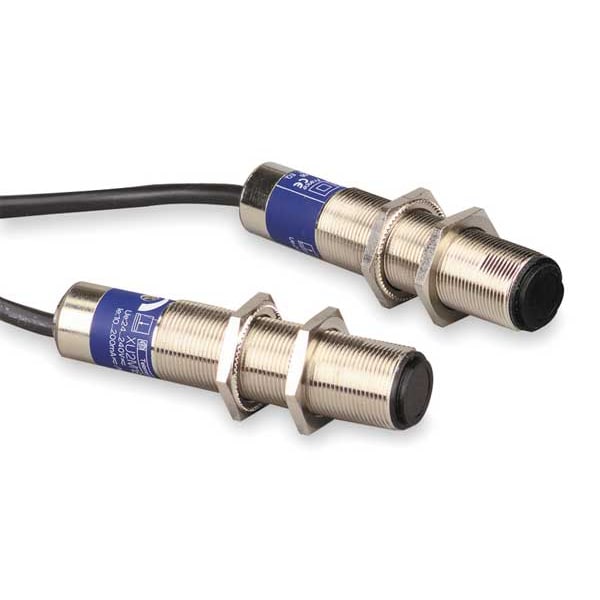

Telemecanique Sensors Polarized Retroreflective Photoelectric Sensor, Bare Wire, Straight, Cylindrical, Light On, SPST XU9M18MB230 - main

Polarized Retroreflective Photoelectric Sensor, Bare Wire, Straight, Cylindrical, Light On, SPST

  • Mfr # XU9M18MB230

  • Zoro # G3154785

product price:  $192.99
/ea
Free Shipping & Returns

Key Features

Sensing Method
Polarized Retroreflective
Electrical Connection
Bare Wire
Style
Cylindrical
Width
0.70"
Orientation
Straight
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
XU9M18MB230
Zoro #
G3154785
UPC #
785901348955
Country of Origin
France

Dimensions

Width
0.70"
Depth
2.20"
Overall Diameter
18 mm
Cable Length
2 m
Length
0.70"
Length - Cylindrical Photoelectric Sensor
18 mm
Diameter
18mm
Diameter - Cylindrical Photoelectric Sensor
18 mm
Overall Height
95 mm
Sensor Diameter
18 mm

Details

Item
Photoelectric Sensor
Sensing Method
Polarized Retroreflective
Electrical Connection
Bare Wire
Style
Cylindrical
Orientation
Straight
Material
metal
Operating Mode
Light On
IP Rating
IP67
Output Circuit Type
SPST
Output Circuit Number of Wires
2
AC Voltage Rating
24-240V AC
DC Voltage Rating
24-240V DC
Standards
CE, CSA Certified, IEC 60529, RoHS, UL Listed
Operating Frequency
25 Hz
Operating Temp. Range
-25 Degrees to 55 Degrees C
Power Requirement
24 to 240VAC/DC
Features
PMMA Lens
Body Material
Brass
Max. Sensing Distance
3m
Response Time
20.0 msec
Power Requirement - Cylindrical Photoelectric Sensor
24 to 240V AC/DC
Max. Load Current
200 mA
Max. Sensing Distance - Cylindrical Photoelectric Sensor
3 m
Light Source
Red and Yellow LED
[Sn] Nominal Sensing Distance
2-2 m polarised reflex need reflector XUZC50
Sensor Design
cylindrical M18
Switching Capacity In Ma
10...200 mA to be used with 0.4 A quick-blow fuse in series with the load)
Output Type
solid state
Supply Circuit Type
AC/DC
Add On Output
without
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Maximum Sensing Distance
3 m
Type Of Output Signal
discrete
Wire Insulation Material
PvR
Electronic Sensor Type
photo-electric sensor
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Enclosure Material
Nickel Plated Brass
Maximum Delay Response
20 ms
Line Of Sight Type
axial
Maximum Delay First Up
300 ms
Setting-Up
sensitivity adjustment
Ambient Air Temperature For Operation
-25-55°C
Kit Composition
reflector XUZC50 || sensor
[Us] Rated Supply Voltage
24...240 V AC/DC
Ambient Air Temperature For Storage
-40-70°C
Status Led
1 LED yellow)output state || 1 LED red)instability
Detection System
polarised reflex
Maximum Voltage Drop
<6 V closed state)
Maximum Delay Recovery
20 ms
Emission
red polarised reflex
Lens Material
PMMA
Maximum Residual Current
1.5 mA open state
Sensor Name
XU9
Switching Frequency
25 Hz
Series Name
general purpose single mode
Electrical Installation Type
Prewired Cable
Series
XU
Sensing Distance - Maximum
2 m
Includes Indicator Lights
Indicator Lights Included
NEMA Enclosure Rating
No Enclosure
Operating Temperature - Maximum
131 Degrees F
Load Current - Maximum
200 mA
Operating Temperature - Minimum
-13 Degrees F

Description

Photoelectric Sensor, Sensing Method - Cylindrical Photoelectric Sensor Retroreflective, Operating Mode - Photoelectric Sensor Light On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 24 to 240V AC/DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor Solid State Relay, SPST, Max. Sensing Distance - Cylindrical Photoelectric Sensor 3 m
