  7. Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 20 to 40 psi Range, Polypropylene

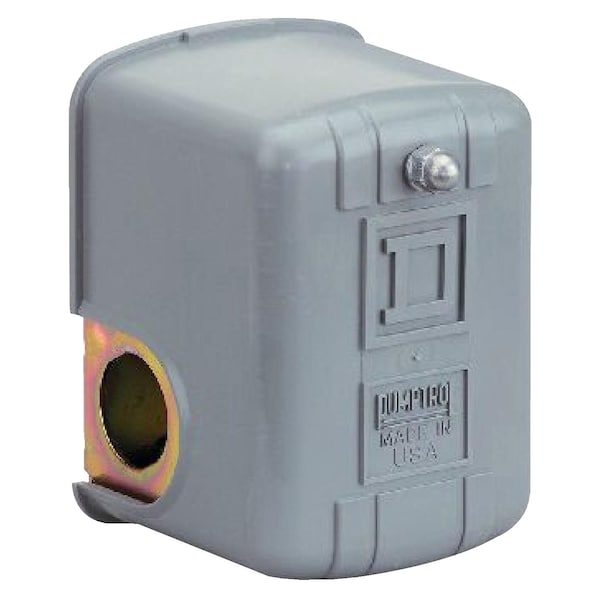

Telemecanique Sensors Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 20 to 40 psi Range, Polypropylene 9013FSG2J20C20 - main

Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 20 to 40 psi Range, Polypropylene

  • Mfr # 9013FSG2J20C20

  • Zoro # G0838157

product price:  $31.75
/ea

Key Features

Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
20 to 40 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9013FSG2J20C20
Zoro #
G0838157
UPC #
785901559269
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
20 to 40 psi
Housing Material
Polypropylene
Factory On Setting
20 psi
Factory Off Setting
40 psi
Standards
CSA, UL
Pressure Switch Unloader
No
Pressure Switch Range
20 to 40 psi
Special Features
Mercury Free; Green Premium product
Pressure Switch Application
Water Pump
Pressure Switch Differential
15 to 30 psi
IP Rating
IP20 (IEC 60529)
Burst Pressure
220 psi
Pressure Switch Factory On/Off Setting
30/50 psi
Pressure Switch Port Type
(1) Port, 1/4 in FNPS
Electrical Connection
Screw-Clamp Terminals
Phase
Single/Three
Series
9013FS
Pressure Switch Electrical Contact Form
DPST
Temp. Range
-33 Degrees to 257 Degrees F
Manual Switch Action
None
Material
Polypropylene Cover; Noryl Thermoplastic Resin Cover
HP
2 HP @ 23 HP @ 230V0V
Product Type
Water Pump Switch
Horsepower @ Three Phase - 240V AC
3 hp
Pressure - Maximum
65 psi
Differential Pressure - Maximum
40 psi
Differential Pressure - Minimum
20 psi
Horsepower @ Three Phase - 480V AC
1 hp
Media Temperature - Minimum
-33 Degrees F
Pressure - Minimum
5 psi
Media Temperature - Maximum
257 Degrees F
Horsepower @ Single Phase - 240V AC
2 hp
Actuator Style
Diaphragm
Switch Function Configuration
None
Horsepower @ Single Phase - 120V AC
1 1/2 hp

Description

Water Pump Switch, Standard, Manual Switch Action None, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 30/50 psi, No Pressure Switch Unloader, Pressure Switch Differential 15 to 30 psi, Pressure Switch Range 20 to 40 psi, Pressure Switch Electrical Contact Form DPST, NEMA Rating 1, Series 9013FS, HP @ 1 Phase - 120V 1 1/2 hp, HP @ 1 Phase - 240V 2 hp, HP @ 3 Phase - 240V 3 hp, HP @ 3 Phase - 480V 1 hp, Temp. Range -33 Degrees to 257 Degrees F
