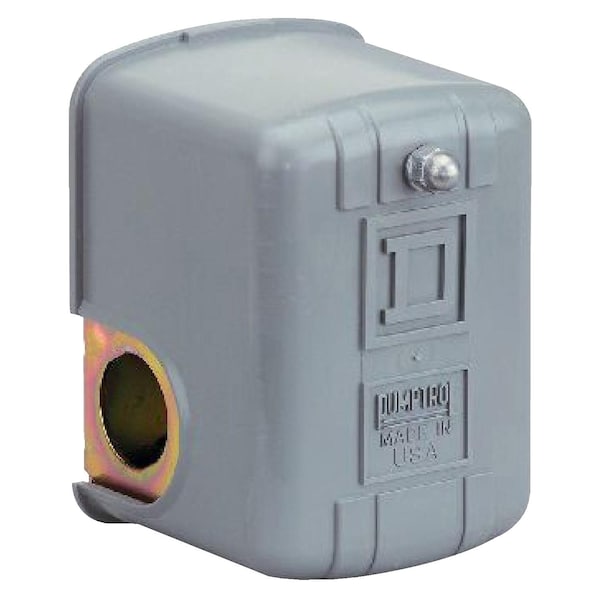

Telemecanique Sensors Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 20 to 65 psi Range, Polypropylene 9013FSG2J18 - main
Shop TELEMECANIQUE SENSORS

Pressure Switch, Standard, DPST, 1 Ports, 1/4" FNPS, 20 to 65 psi Range, Polypropylene

  • Mfr # 9013FSG2J18

  • Zoro # G0838470

CAD Available
product price:  $31.29
/ea

Key Features

CAD Drawing
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
20 to 65 psi
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9013FSG2J18
Zoro #
G0838470
UPC #
785901159018
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo
Overall Width
2.78 in
Overall Height
2.8 in
Overall Depth
3.76 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPS
Range
20 to 65 psi
Housing Material
Polypropylene
Factory On Setting
20 psi
Factory Off Setting
50 psi
Standards
CSA, NSF, UL
Special Features
Mercury Free; Green Premium product
Pressure Switch Factory On/Off Setting
30/50 psi
Pressure Switch Electrical Contact Form
DPST
Pressure Switch Port Type
(1) Port, 1/4 in FNPS
IP Rating
IP20 (IEC 60529)
Manual Switch Action
None
Series
9013FS
Temp. Range
-33 Degrees to 257 Degrees F
Phase
Single/Three
Pressure Switch Unloader
No
Pressure Switch Range
20 to 65 psi
Electrical Connection
Screw-Clamp Terminals
Burst Pressure
220 psi
Pressure Switch Application
Water Pump
Pressure Switch Differential
15 to 30 psi
Material
Polypropylene Cover; Noryl Thermoplastic Resin Cover
HP
2 HP @ 23 HP @ 230V0V
Product Type
Water Pump Switch
Media Temperature - Minimum
-33 Degrees F
Pressure - Minimum
5 psi
Horsepower @ Three Phase - 480V AC
1 hp
Pressure - Maximum
65 psi
Actuator Style
Diaphragm
Differential Pressure - Minimum
15 psi
Horsepower @ Single Phase - 240V AC
2 hp
Switch Function Configuration
None
Horsepower @ Three Phase - 240V AC
3 hp
Differential Pressure - Maximum
30 psi
Media Temperature - Maximum
257 Degrees F
Horsepower @ Single Phase - 120V AC
1 1/2 hp
CAD Available
Yes
Operating Temperature - Minimum
-33 Degrees F
Pressure Switch Action Type
Standard
Unloader
No Unloader Included
NEMA Enclosure Rating
1
Operating Temperature - Maximum
257 Degrees F

Description

Water Pump Switch, Standard, Manual Switch Action None, (1) Port, 1/4 in FNPS, Pressure Switch Factory On/Off Setting 30/50 psi, No Pressure Switch Unloader, Pressure Switch Differential 15 to 30 psi, Pressure Switch Range 20 to 65 psi, Pressure Switch Electrical Contact Form DPST, NEMA Rating 1, Series 9013FS, HP @ 1 Phase - 120V 1 1/2 hp, HP @ 1 Phase - 240V 2 hp, HP @ 3 Phase - 240V 3 hp, HP @ 3 Phase - 480V 1 hp, Temp. Range -33 Degrees to 257 Degrees F
