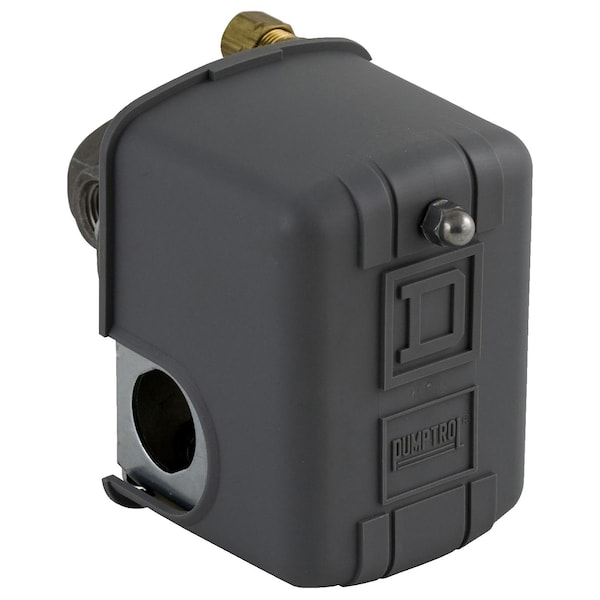

Pressure Switch, Standard, DPST, 1 Ports, 1/4" MNPT, 100 to 200 psi Range, Polypropylene
Mfr # 9013FHG59J59X
Zoro # G0562950
product price:Â $63.15
/eaKey Features
Action
Standard
Contact Form
DPST
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4 in MNPT
Range
100 to 200 psi
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9013FHG59J59X
- Zoro #
- G0562950
- UPC #
- 785901051527
- Country of Origin
- Mexico
Details
- Item
- Pressure Switch
- Action
- Standard
- Contact Form
- DPST
- Number of Pressure Connection Ports
- 1
- Pressure Connection Type
- 1/4 in MNPT
- Range
- 100 to 200 psi
- Housing Material
- Polypropylene
- Factory On Setting
- 100 psi
- Factory Off Setting
- 175 psi
- Standards
- CE; UL 508; UL Listed file E12158; CSA file LR25490
- IP Rating
- IP20 (IEC 60529)
- Electrical Connection
- Screw-Clamp Terminals
- Pressure Switch Differential
- 40 psi
- Temp. Range
- -33 to 257 °F
- Special Features
- Mercury Free; Green Premium product
- Pressure Switch Application
- Air Compressor
- Pressure Switch Range
- 100 to 200 psi
- Off Set Point
- 175 psi
- Burst Pressure
- 220 psi
- Pressure Switch Port Type
- (1) Port, 1/4 in MNPT
- Pressure Switch Electrical Contact Form
- DPST
- HP
- 3 HP @ 230V
- Material
- Polypropylene Cover; Noryl Thermoplastic Resin Cover
Description
Pressure Switch 575Vac 1Hp F +Options
