Shop TELEMECANIQUE SENSORS

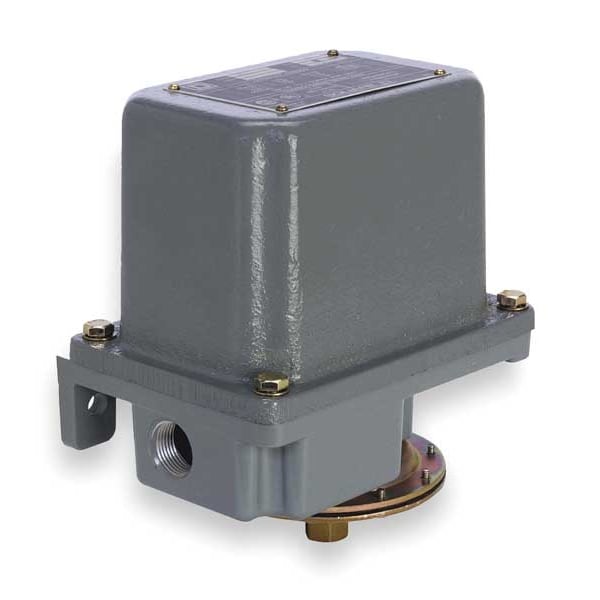

Pressure Switch, Standard, SPDT, 1 Ports, 1/4-18" FNPT, 3 to 150 psi Range, Aluminum

  • Mfr # 9012GAR5
  • Zoro # G1644675
product price:
$
1,688.99
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPT
Range
3 to 150 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
9012GAR5
Zoro #
G1644675
UPC #
785901025085
Country of Origin
Mexico
Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4" FNPT
Range
3 to 150 psi
Housing Material
Aluminum
Factory On Setting
150 psi
Factory Off Setting
3 psi
Standards
CSA C22.2, RoHS, UL 508
Actuation Type
Diaphragm
DC Contact Rating
0.11A @ 250V, 0.22A @ 125V
AC Contact Rating
10A @ 480V
Series
9012G
Pressure Switch Port Type
1-Port 1/4-18 in FNPT
Temp. Range
-10 to 185 °F
Electrical Connection
Screw-Clamp Terminals
Pressure Switch Differential
9 to 35 psi
Max. Pressure
475 psi
IP Rating
54
Special Features
Mercury Free; Green Premium product
Pressure Switch Electrical Contact Form
SPDT
Pressure Switch Range
3 to 150 psi
Material
Cast Aluminium
Differential Pressure - Minimum
9 psi
Pressure - Maximum
150 psi
Media Temperature - Minimum
-40 Degrees F
Differential Pressure - Maximum
35 psi
Media Temperature - Maximum
250 Degrees F
Proof Pressure
475 psi
Deadband Adjustability
Adjustable
Pressure - Minimum
3 psi
NEMA Enclosure Rating
7, 9
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-10 Degrees F
Actuator Style
Diaphragm

Description

Pressure Switch, NEMA Rating 7, 9, Series 9012G, Temp. Range -10 Degrees to 185 Degrees F, Standards CSA C22.2, RoHS, UL 508, Special Features Nitrile (Buna-N) Diaphragm, Control Circuit Rated, Single Stage Switch, For Hazardous Location Usage - Explosion Proof (Indoor) Enclosure, AC Contact Rating 3 A @ 240 V
