Shop TELEMECANIQUE SENSORS

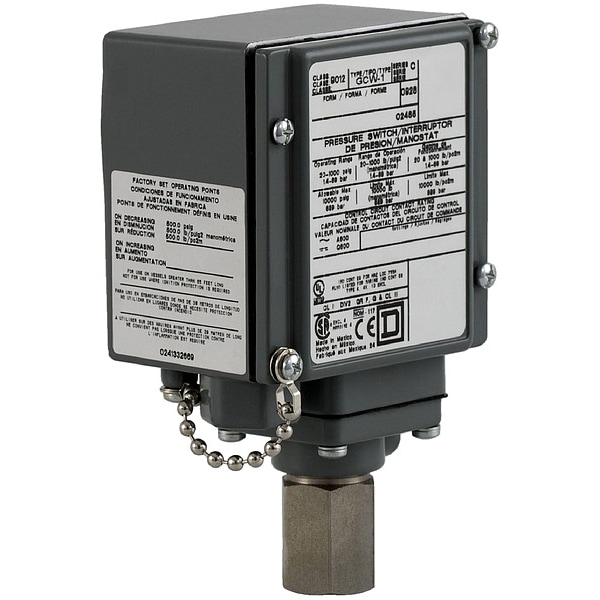

Pressure Switch, Standard, SPDT, 1 Ports, 1/4-18" FNPT, 20 to 1000 psi Range, Aluminum

  • Mfr # 9012GFW1

  • Zoro # G1931727

product price:  $878.41
/ea
Free Shipping & Returns

Key Features

Action
Standard
Contact Form
SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4-18" FNPT
Range
20 to 1000 psi
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9012GFW1
Zoro #
G1931727
UPC #
785901024934
Country of Origin
Mexico

Dimensions

Manufacturer Warranty Length
18 mo
Overall Height
6.24 in
Overall Width
5.05 in
Overall Depth
4.56 in

Details

Item
Pressure Switch
Action
Standard
Contact Form
SPDT
Number of Pressure Connection Ports
1
Pressure Connection Type
1/4-18" FNPT
Range
20 to 1000 psi
Housing Material
Aluminum
Factory On Setting
1000 psi
Factory Off Setting
20 psi
Standards
CE, CSA C22.2, UL 508
Actuation Type
Diaphragm
DC Contact Rating
0.11A @ 250V, 0.22A @ 125V
Series
9012G
AC Contact Rating
10A @ 480V
Temp. Range
-10 to 185 °F
IP Rating
54
Max. Pressure
10000 psi
Pressure Switch Electrical Contact Form
SPDT
Pressure Switch Differential
59 psi
Pressure Switch Range
20 to 1000 psi
Electrical Connection
Screw-Clamp Terminals
Pressure Switch Port Type
1-Port 1/4-18 in FNPT
Material
Die cast aluminium alloy
Differential Pressure - Maximum
59 psi
Pressure - Maximum
1,000 psi
Deadband Adjustability
Fixed
Pressure - Minimum
20 psi
Media Temperature - Maximum
250 Degrees F
Proof Pressure
10,000 psi
Media Temperature - Minimum
-15 Degrees F
Operating Temperature - Maximum
185 Degrees F
Operating Temperature - Minimum
-10 Degrees F
NEMA Enclosure Rating
13, 4, 4X

Description

Pressure Switch, NEMA Rating 13, 4, 4X, Series 9012G, Temp. Range -10 Degrees to 185 Degrees F, Standards CE, CSA C22.2, UL 508, Special Features Viton(R) Fluorocarbon Piston, Control Circuit Rated, Single Stage Switch, Water Tight, Dust Tight, Oil Tight and Corrosion Resistant (Indoor/Outdoor) Enclosure, AC Contact Rating 3 A @ 240 V, 6 A @ 120 V
