  6. Proximity Sensor, LED, 12mm, NO

This item is Discontinued.

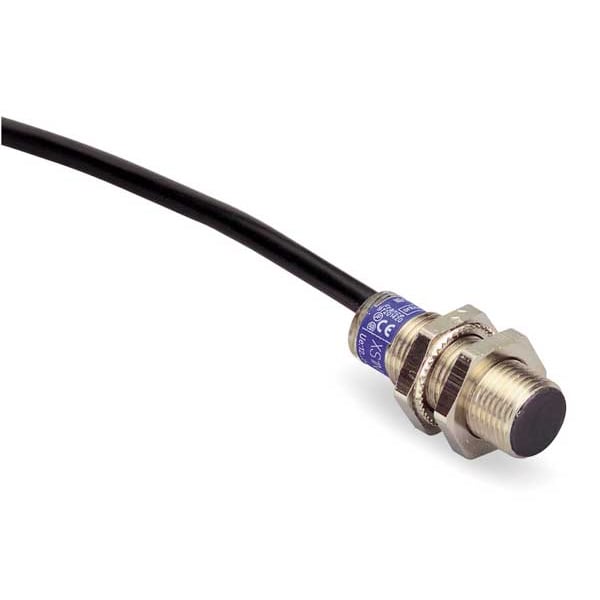

Telemecanique Sensors Proximity Sensor, LED, 12mm, NO XS1M12MA250

Proximity Sensor, LED, 12mm, NO (Discontinued)

  • Mfr # XS1M12MA250
  • Zoro # G2512203
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS1M12MA250
Zoro #
G2512203
UPC #
785901915379
Country of Origin
France

Dimensions

Length
41mm
Proximity Sensor Diameter
12.0mm
Cable Length
2 m

Details

Item
Inductive Cylindrical Proximity Sensor
Proximity Sensor Style
Cylindrical Proximity Sensor
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Output Circuit Type
2 Wire
Output Mode
NO
Max. Detecting Distance
2.0mm
Proximity Sensor Electrical Connection
2m Cable
Basic Proximity Sensor Case Material
Metal
Shielded / Unshielded
Shielded
Case Material
Nickel Plated Brass
Proximity Sensor Operating Frequency
25 Hz AC/4000 Hz DC
Operating Temp. Range
-13 Degrees to 158 Degrees F
Max. Current Load
200mA
Standards
CE, CSA, UL Listed
Description/Special Features
Red LED Output Indication, Overload And Short-Circuit Protection
IP Rating
IP68, IP69K
Electrical Connection
2m Cable
Features
Overload Protection, Red LED Indicator, Short Circuit Protection
Electrical Installation Type
Prewired Cable
Includes Indicator Lights
Indicator Lights Included
Body Material
Brass
Style
Cylindrical
Output Circuit Number of Wires
2
Body Finish
Nickel Plated
Sensing Method
Inductive
Sensing Face Shielding
Shielded

Description

Inductive Cylindrical Proximity Sensor, Inductive, 12.0mm, Proximity Sensor Power Requirement 24 to 240V AC/DC, Shielded, Proximity Sensor Operating Frequency 25 Hz AC/4000 Hz DC, Proximity Sensor Output Circuit Type 2 Wire, Max. Detecting Distance 2.0mm, Proximity Sensor Electrical Connection 2m Cable, Output Mode NO, IP Rating IP68, IP69K, Case Material Nickel Plated Brass, Length 41mm, Operating Temp. Range -13 Degrees to 158 Degrees F, Max. Current Load 200mA
