This item is Discontinued.

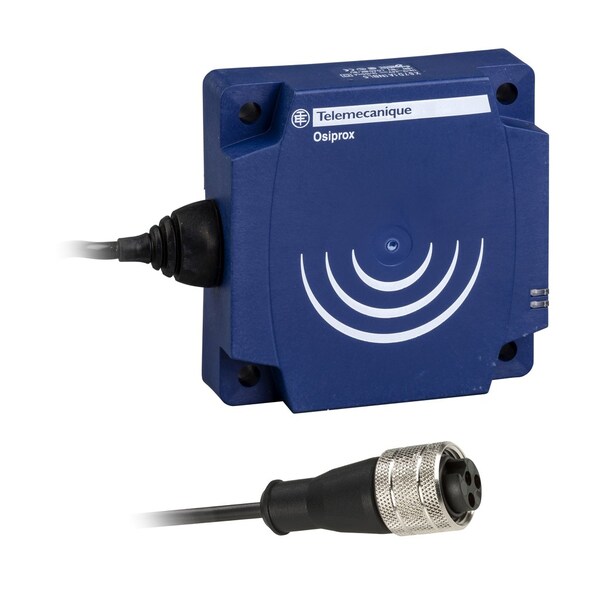

Telemecanique Sensors Proximity Sensor Sz D Ac/Dc Xs8 XS8D1A1MAU20

Proximity Sensor Sz D Ac/Dc Xs8 (Discontinued)

  • Mfr # XS8D1A1MAU20
  • Zoro # G3154551
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS8D1A1MAU20
Zoro #
G3154551
UPC #
785901264460
Country of Origin
France

Dimensions

Length
80 mm
Width
80 mm
Depth
26 mm
Overall Width
80 mm
Overall Height
80 mm
Overall Depth
26 mm

Details

Item
Inductive Rectangular Proximity Sensor
Proximity Sensor Style
Flat Form 80 x 80 x 26
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
24 to 240V AC/DC
Proximity Sensor Output Circuit Type
2-Wire AC/DC
Output Mode
1 NO
Max. Detecting Distance
40 mm flush mountable; 60 mm non flush mountable
Proximity Sensor Electrical Connection
Male Connector 1/2"20 UNF, 3 Pins
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 150 Hz
IP Rating
IP67
Electrical Connection
1/2 in Connector
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Description/Special Features
Frontal Detection Face
Standards
CCC, CE, CSA, Ecolab, UL Listed
Application
general purpose
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Maximum Delay Response
0.3 ms
Maximum Voltage Drop
<5.5 V closed)
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Body Type
fixed
Differential Travel
1...15% of Sr
Maximum Delay First Up
15 ms
Supply Voltage Limits
20-264 V AC/DC
Maximum Delay Recovery
6 ms
Storage Temp. Range
-40-85 °C
Series
XS8
Switching Capacity
5...200 mA DC || 5...300 mA AC
Output Circuit Contact Form
NO
Electrical Installation Type
Direct Connector
Number of Pins
3
Sensing Method
Inductive
Output Circuit Number of Wires
2
Switching Frequency
150 Hz
Includes Indicator Lights
No Indicator Lights Included
Sensing Face Shielding
Shielded
Style
Rectangular
Body Material
PBT
AC Voltage Rating
24-240V AC
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
-13 Degrees F
Sensing Distance - Maximum
60 mm
DC Voltage Rating
24-240V DC

Description

Inductive Rectangular Proximity Sensor, IP Rating IP67, Standards CCC, CE, CSA, Ecolab, UL Listed
