This item is Discontinued.

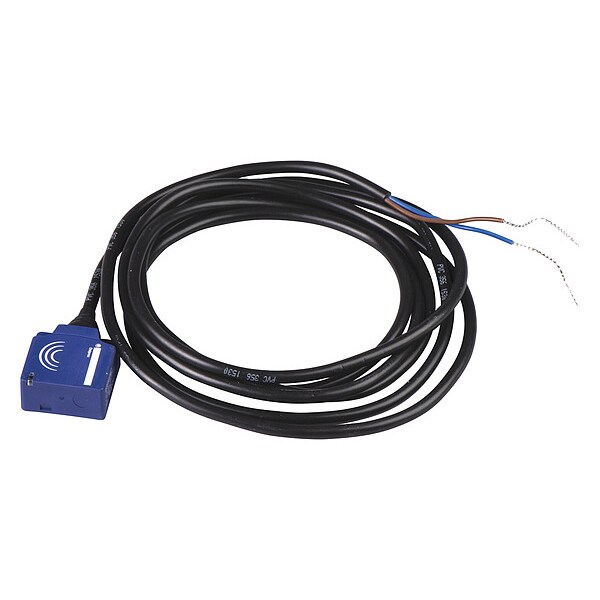

Telemecanique Sensors Proximity Sensor Sz E Dc Pnp Xs7 XS7E1A1PAL2

Proximity Sensor Sz E Dc Pnp Xs7 (Discontinued)

  • Mfr # XS7E1A1PAL2
  • Zoro # G1966400
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS7E1A1PAL2
Zoro #
G1966400
UPC #
-
Country of Origin
Indonesia

Dimensions

Length
26 mm
Width
26 mm
Depth
13 mm
Cable Length
2 m
Overall Height
26 mm

Details

Item
Inductive Proximity Sensor
Proximity Sensor Style
Flat Form 26 x 26 x 13
Measurement Range
0 to 8 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
8 mm
Standards
C-Tick, CE, CSA, Ecolab, REACH, RoHS, UL Listed
Proximity Sensor Electrical Connection
Cable Connection
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 1000 Hz
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
IP Rating
IP68
Operating Temp. Range
-25 to 70 Degrees C
Max. Current Load
10 mA
Maximum Delay Recovery
6 ms
Supply Voltage Limits
10-36 V DC
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Application
general purpose
Maximum Delay First Up
10 ms
Maximum Voltage Drop
<2 V closed)
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Storage Temp. Range
-40-85 °C
Body Type
fixed
Differential Travel
1...15% of Sr
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
2 ms
Series
XS7
Sensing Distance - Maximum
10 mm
Features
18 months Warranty, Yellow LED Output Indication
Operating Temperature - Minimum
-13 Degrees F
Sensing Method
Inductive
Body Material
PBT
Electrical Installation Type
Prewired Cable
Output Circuit Contact Form
NO
Switching Frequency
1,000 Hz
Output Circuit Type
PNP
Load Current - Maximum
10 mA
Operating Temperature - Maximum
158 Degrees F

Description

Inductive Proximity Sensor, IP Rating IP68, Standards C-Tick, CE, CSA, Ecolab, REACH, RoHS, UL Listed
