This item is Discontinued.

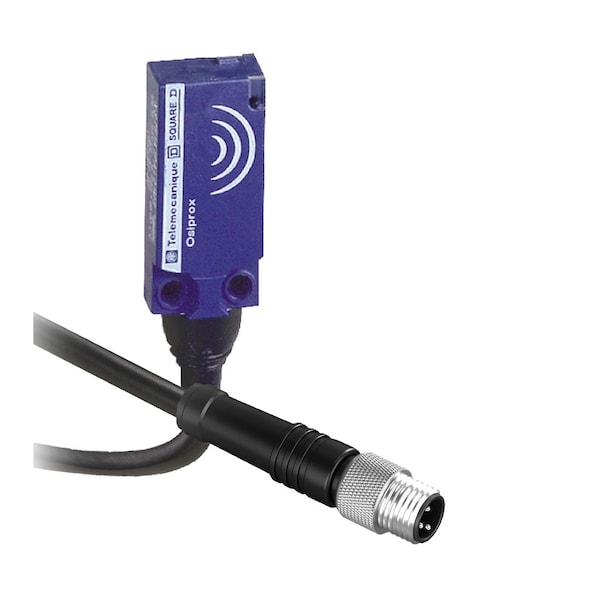

Telemecanique Sensors Proximity Sensor Sz F Dc Pnp Xs7 XS7F1A1PAL01M8

Proximity Sensor Sz F Dc Pnp Xs7 (Discontinued)

  • Mfr # XS7F1A1PAL01M8
  • Zoro # G3153790
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XS7F1A1PAL01M8
Zoro #
G3153790
UPC #
785901416050
Country of Origin
Indonesia

Dimensions

Length
32 mm
Width
15 mm
Depth
8 mm
Overall Height
15 mm

Details

Item
Inductive Proximity Sensor
Proximity Sensor Style
Flat Form 15 x 32 x 8
Measurement Range
0 to 4 mm
Proximity Sensing Method
Inductive
Proximity Sensor Power Requirement
12 to 24V DC
Proximity Sensor Output Circuit Type
3-Wire DC PNP
Output Mode
1 NO
Max. Detecting Distance
4 mm
Proximity Sensor Electrical Connection
Remote Male Connector M8, 3 Pins
Basic Proximity Sensor Case Material
PBT
Proximity Sensor Operating Frequency
Less than Or Equal to 2000 Hz
Standards
C-Tick, CE, CSA, REACH, RoHS, UL Listed
Description/Special Features
Frontal Detection Face; Output State 1 LED Yellow
Max. Current Load
10 mA
Operating Temp. Range
-25 to 70 Degrees C
Electrical Connection
M8
IP Rating
IP68
Application
general purpose
Features
18 months Warranty, Yellow LED Output Indication
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
Differential Travel
1...15% of Sr
Switching Capacity
<= 100 mA DC overload and short-circuit protection
Maximum Delay First Up
5 ms
Body Type
fixed
Shock Resistance
50 gn 11 ms IEC 60068-2-27
Maximum Delay Response
0.1 ms
Supply Voltage Limits
10-36 V DC
Maximum Voltage Drop
<2 V closed)
Storage Temp. Range
-40-85 °C
Maximum Delay Recovery
0.1 ms
Series
XS7
Sensing Distance - Maximum
5 mm
Output Circuit Contact Form
NO
Operating Temperature - Maximum
158 Degrees F
Switching Frequency
2,000 Hz
Operating Temperature - Minimum
-13 Degrees F
Load Current - Maximum
10 mA
Sensing Method
Inductive
Body Material
PBT
Output Circuit Type
PNP

Description

Inductive Proximity Sensor, IP Rating IP68, Standards C-Tick, CE, CSA, REACH, RoHS, UL Listed
