  8. Safety Interlock 300Vac 10A Xcsta

This item is Discontinued.

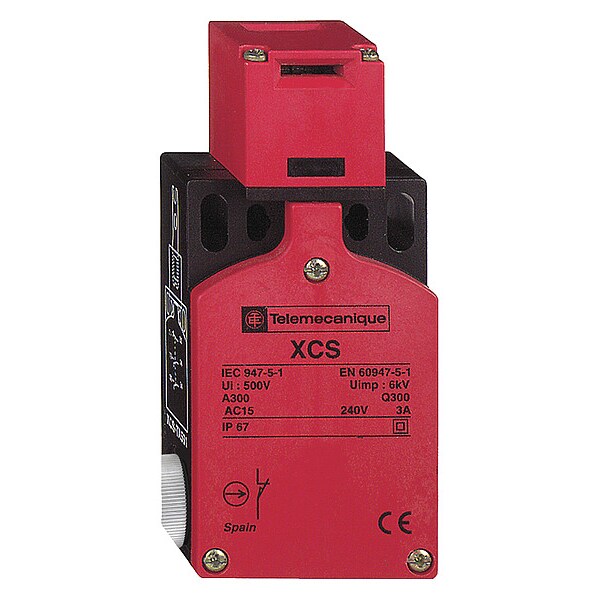

Telemecanique Sensors Safety Interlock 300Vac 10A Xcsta XCSTA893

Safety Interlock 300Vac 10A Xcsta (Discontinued)

  • Mfr # XCSTA893
  • Zoro # G0835549
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
XCSTA893
Zoro #
G0835549
UPC #
785901104568
Country of Origin
France

Dimensions

Height
115-115 mm
Width
52 mm
Depth
30 mm

Details

Item
Safety Interlock Switch
Series
XCSTA
Material
plastic
Head Material
PA (polyamide)
Standards
EN/ISO 12100 || EN 1088/ISO 14119 || CSA C22.2 No 14 || EN/IEC 60204-1 || EN/IEC 60947-5-1 || UL 508
Electrical Connection
terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
Body Material
PA (polyamide)
Mechanical Durability
1000000 cycles
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Shock Resistance
10 gn 11 ms IEC 60068-2-27
Head Type
key operated turret head
Contacts Type And Composition
3 NC
Product Or Component Type
safety switch
Ip Degree Of Protection
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Positive Opening Minimum Force
15 N
Short-Circuit Protection
10 A cartridge fuse gG (gl)
Number Of Poles
3
Design
compact
Actuator Forcible Withdrawal Rtc
10 N
Ambient Air Temperature For Storage
-40-70°C
Product Certifications
CSA || UL
[Ie] Rated Operational Current
6 A 120 V, AC-15, A300 EN/IEC 60947-5-1 || 3 A 240 V, AC-15, A300 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1
Cable Entry
2 entries tapped 1/2" NPT
Contact Operation
slow-break, simultaneous
Positive Opening
with NC contact
Protective Treatment
TC
Ambient Air Temperature For Operation
-25-70°C
Maximum Operating Rate
10 cyc/mn for maximum durability
[Ui] Rated Insulation Voltage
300 VUL 508 || 500 VEN/IEC 60947-1 || 300 VCSA C22.2 No 14
Safety Level
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Electrical Shock Protection Class
class II EN/IEC 61140
Minimum Actuation Speed
0.01 m/s
Insulation
double insulated
Maximum Actuation Speed
0.5 m/s
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-5-1
Component Name
XCSTA
Actuator Material
Plastic

Description

Safety Interlock Switch, Series XCSTA
