Item

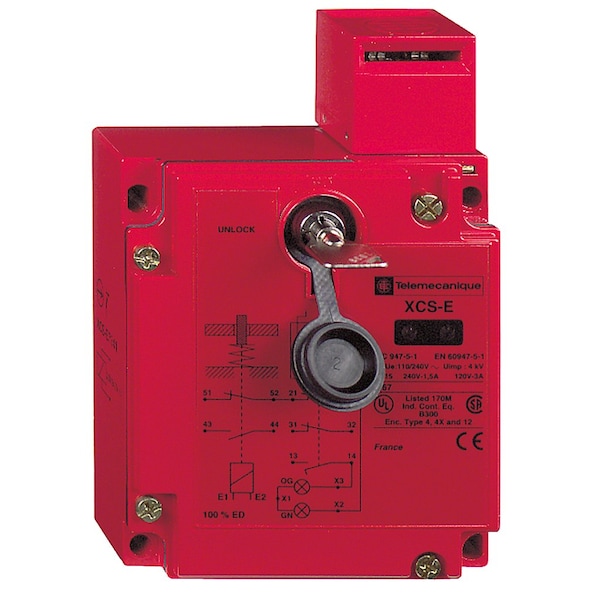

Safety Interlock Switch
Standards
EN/IEC 60204-1 || EN 1088/ISO 14119 || EN/ISO 12100 || UL 508 || EN/IEC 60947-5-1 || CSA C22.2 No 14
Electrical Connection
terminal 1 x 0.5...2 x 1.5 mm² with or without cable end
Head Type
key operated turret head
Mechanical Durability
1000000 cycles
Vibration Resistance
5 gn 10-500 Hz)IEC 60068-2-6
Shock Resistance
10 gn 11 ms IEC 60068-2-27
Product Or Component Type
safety switch
[Ithe] Conventional Enclosed Thermal Current
6A
Short-Circuit Protection
10 A cartridge fuse gG (gl)
Maximum Operating Rate
10 cyc/mn for maximum durability
Safety Level
can reach category 4 with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach PL = e with the appropriate monitoring system and correctly wired EN/ISO 13849-1 || can reach SIL 3 with the appropriate monitoring system and correctly wired EN/IEC 61508
Minimum Actuator Force For Extraction
20 N
Protection Type
overvoltage protection signalling circuit
[Ui] Rated Insulation Voltage
50 VEN/IEC 60947-1 signalling circuit
Electrical Shock Protection Class
class I EN/IEC 61140
Supply Frequency
50/60 Hz
Contact Operation
slow-break, break before make
Signalling Circuit Consumption
7 mA
Actuator Forcible Withdrawal Rtc
2000 N
Electromagnet Interlocking
locking on de-energisation and unlocking on energisation of solenoid
Cable Entry
2 entries tapped Pg 13.5
Signalling Circuit Voltage
24/48 V 20...52 V)
[Ie] Rated Operational Current
0.55 A 125 V, DC-13, Q300 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q300 EN/IEC 60947-5-1 || 3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1
Solenoid Contacts Type And Composition
1 NC + 1 NO slow-break, simultaneous)
Contacts Type And Composition
1 NC + 2 NO
Ip Degree Of Protection
IP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
Maximum Actuation Speed
0.5 m/s
Supply Voltage Type
AC/DC
Product Certifications
UL || CSA
Power Consumption In Va
10 VA inrush || 10 VA sealed
Signalling Circuit Type
AC/DC
[Uimp] Rated Impulse Withstand Voltage
6 kV EN/IEC 60947-5-1
Ambient Air Temperature For Storage
-40-70°C
Ambient Air Temperature For Operation
-25-40°C
Minimum Actuation Speed
0.01 m/s
[Us] Rated Supply Voltage
24 V - 20...10 %
Positive Opening
with NC contact
Local Signalling
for guard open/guard closed and locked 2 LEDs (green or orange)
