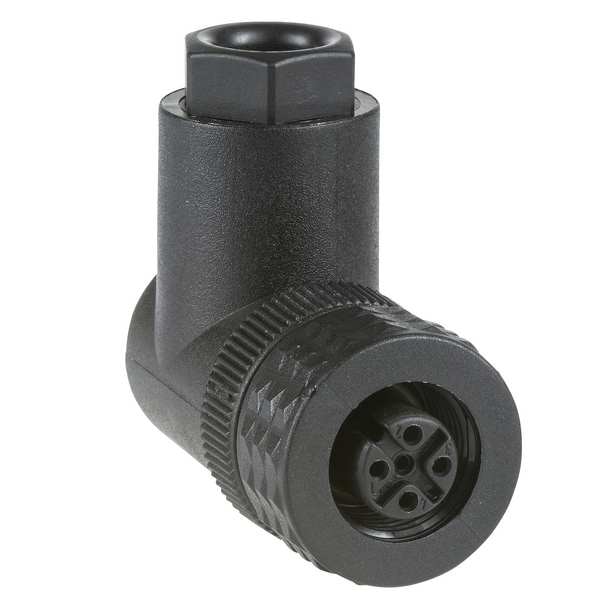

Internal Thread Connector, 90 Angle, M12

Name: Internal Thread Connector, 90 Angle, M12
Brand: Telemecanique Sensors
SKU: G3154877
Price: 15.99 USD
Availability: InStock

15.99

/ea

Proximity Sensor Power Requirement

125V AC/150V DC

IP Rating

IP67

Maximum Operating Temperature

185 Degrees F

Proximity Sensor Electrical Connection

Screw-On Cable Connector Fixing; Elbowed Female Connector M12, 4 Pins

Operating Temp. Range

-40 to 85 Degrees C

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

MFR #: XZCC12FCP40B
Zoro #: G3154877
UPC #: 785901806028
Country of Origin: Germany
Item: Internal Thread Connector
Proximity Sensor Power Requirement: 125V AC/150V DC
IP Rating: IP67
Maximum Operating Temperature: 185 Degrees F
Proximity Sensor Electrical Connection: Screw-On Cable Connector Fixing; Elbowed Female Connector M12, 4 Pins
Operating Temp. Range: -40 to 85 Degrees C
Max. Current Load: 0.125 A
Standards: RoHs
Number of Pins: 4
Body Material: Plastic
Max. Current: 3 A
Keyway: Single
Plug or Connector Type: Female
Max. Voltage: 125V AC/150V DC
Color: Black
Product Type: Internal Thread Connector
Compatible Wire Gauge - Maximum: 22 AWG
Maximum Contact Resistance: 8000 micron Ohm
Connection Color: Black
Nominal Current: 3 A
Application: Power
Locking Style: Screw on
Insulation Resistance: 1000 G¿
Minimum Operating Temperature: -40 Degrees F
Connection Type: Cable, Wire
Housing Material: Plastic
Connector Orientation: 90 Degrees Angle
Connector Body Type: Pin
Cord Grip Included: PG7
