Shop HONEYWELL

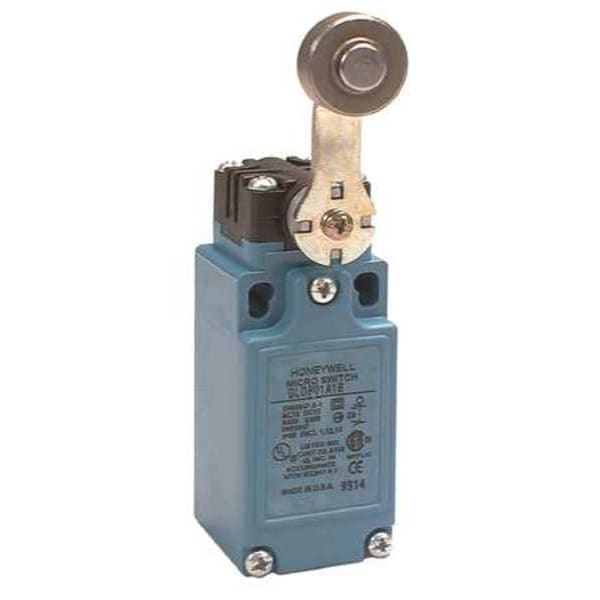

Limit Switch, Roller Lever, Rotary, 1NC/1NO, 10A at 300V AC, Actuator Location: Side

  • Mfr # GLCA01A1B

  • Zoro # G4323067

product price:
$
84.99
/ea

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
GLCA01A1B
Zoro #
G4323067
UPC #
-
Country of Origin
Mexico
Item
Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
Roller Lever, Rotary
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Electrical Connection
Screw Terminals
Limit Switch Style
General Purpose Limit Switch
Boot Sealed Actuator (Limit Switch)
No
Actuator Style
Roller Lever Plunger
Series
GLC
Actuator Location
Side
Contact Form
1NO/1NC
Basic Actuator Style (Limit Switch)
Rotary
Operating Temp. Range
-40 Degrees to 185 Degrees F
Operating Force
1.1 in-lb
Standards
CCC, CE, CSA, UL Listed
Actuator Location (Limit Switch)
Side
Movement
CCW, CW
Travel
Differential Travel 11.5 Degrees , Maximum Pretravel 26 Degrees , Minimum Over Travel 49 Degrees , Operating Position 26 Degrees
Mounting Hole - Limit Switch
(4) 0.21 in dia
DC Contact Rating
10 A @ 250 V
Body Style (Limit Switch)
Miniature
NEMA Rating
1, 12, 13, 4
Stem Thread - Limit Switch
No Stem
Body Material
Metal
AC Contact Rating
10 A @ 300 V
Amps
10
Voltage Rating
300VAC/250VDC
Wiring Entry
1/2 in NPT
Actuator Style (Limit Switch)
Rotary, Roller Lever
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Number of Poles
1
IP Rating
IP66
Roller Material
Steel
Mounting Hole Spacing - Limit Switch
2.36 in x 1.18 in
Contact Form - Limit Switch
1NC/1NO
Boot Sealed Actuator - Limit Switch
No
Arm Material
Steel
Differential Travel
11.5 Degrees
NEMA Enclosure Rating
1, 12, 13, 4
Number of Mounting Holes
4
Overtravel
49 Degrees
Mounting Hole Horizontal Center to Center Distance
22 mm
Boot Sealed Actuator
No Boot Included
Mounting Style
Surface
Directional Movement
CCW/CW
Body Configuration
Non Plug-In
Operating Temperature - Minimum
-40 Degrees F
Pretravel
26 Degrees
Operating Torque - Maximum
1.1 in-lb
Operating Temperature - Maximum
185 Degrees F
Mounting Hole Vertical Center to Center Distance
60 mm

Description

Non Plug-In Limit Switch, Actuator Style - Limit Switch Roller Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 1NC/1NO, Actuator Length - Limit Switch 1.83 in, Body Height - Limit Switch 2.17 in, Body Width - Limit Switch 1.2 in, Body Depth - Limit Switch 1.18 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Miniature, NEMA Rating 1, 12, 13, 4
