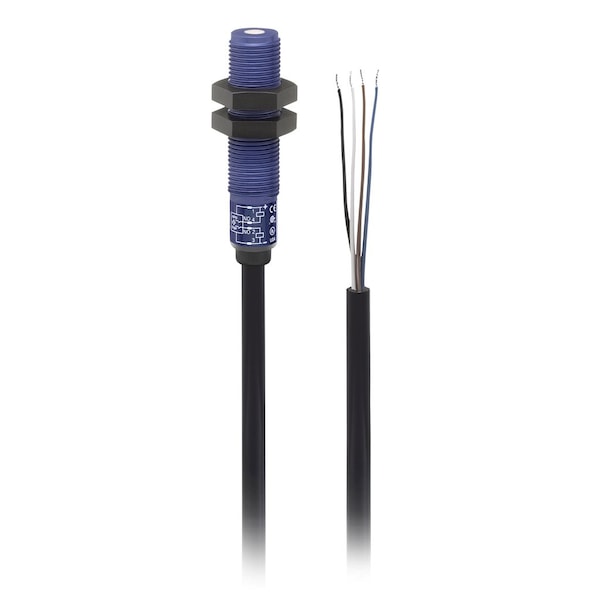

Telemecanique Sensors Superprox Ultrasonic Proximity Sensor SM300A22800 - main

Superprox Ultrasonic Proximity Sensor

  • Mfr # SM300A22800

  • Zoro # G0671721

product price:  $250.99
/ea
Free Shipping & Returns

Key Features

Enclosure Material
ULTEM
Width
12 mm
Beam Angle
8°
Material
plastic
Height
12 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SM300A22800
Zoro #
G0671721
UPC #
-
Country of Origin
United States

Dimensions

Width
12 mm
Height
12 mm
Length
53.08 mm
Depth
12 mm
Minimum Size Of Detected Object
cylinder diameter 2.5 mm - up to 1 mm sensing distance

Details

Item
Superprox Ultrasonic Proximity Sensor
Enclosure Material
ULTEM
Beam Angle
8°
Material
plastic
Transmission Frequency
500 kHz
Type Of Output Signal
discrete
Resistance To Electromagnetic Fields
10 V/m level 3 IEC 61000-4-3
Vibration Resistance
+/-1 mm 10-55 Hz)IEC 60068-2-6
Product Specific Application
discrete proximity
Discrete Output Type
PNP/NPN
Current Consumption
25 mA
Wiring Technique
4-wire
Type Of Sensing Window
fixed
[Sn] Nominal Sensing Distance
50.8-50.8 mm
Ambient Air Temperature For Storage
-40-100°C
Sensor Type
ultrasonic sensor
[Sd] Sensing Range
6.3-50.8 mm
Ambient Air Temperature For Operation
-30-70°C
Device Short Name
SM300
Front Material
glass epoxy
Resistance To Fast Transients
1 kV level 3 IEC 61000-4-4
Repeat Accuracy
0.007
Iso Thread
M12 x 1
Sensor Design
cylindrical M12
Maximum Switching Current
100 mA reverse polarity protection
Marking
CE
Supply Voltage Limits
10-28 V DC
Nema Degree Of Protection
NEMA 4X indoor use only)
[Us] Rated Supply Voltage
12...24 V DC overload and short-circuit protection
Blind Zone
6.4-6.4 mm
Product Certifications
UL
Electrical Connection
cable, 3 m
Series Name
Superprox 300
Ip Degree Of Protection
IP67
Maximum Differential Travel
0.7 mm
Relative Humidity
100-100 % without condensation
Discrete Output Function
1 NO
Shock Resistance
30 gn in all 3 axes 11 ms IEC 60068-2-27

Description

Superprox Ultrasonic Proximity Sensor
