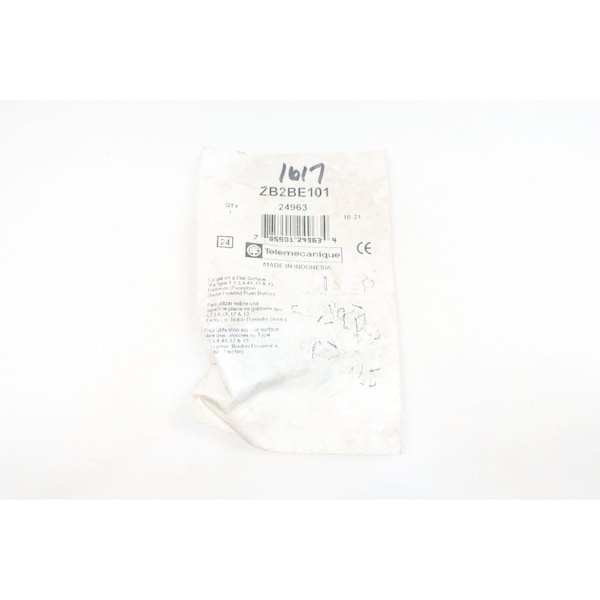

Terminal And Contact Block (Discontinued)

EN/IEC 60947-5-1 || UL 508 || EN/IEC 60204-32 || CSA C22.2 No 14

spring return

10A

-40-70°C

15 gn 10-500 Hz)IEC 60068-2-6

XB4 || XAPS2 || XACA || XB5

25 MOhm

A600 AC-15, Ue = 240 V, Ie = 3 A IEC 947-5-1 appendix A || A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 947-5-1 appendix A || Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 947-5-1 appendix A || Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 947-5-1 appendix A

contact block

front mounting

6 kV IEC 60947-1

(13-14)NO

single speed

ZB2

-25-70°C

600 V 3)IEC 60947-1

slow-break

control circuit

13-15 N

class II IEC 61140

40 W DC-13 1000000 cycles 3600 cyc/h 120 V 0.5 IEC 60947-5-1 || 48 W DC-13 1000000 cycles 3600 cyc/h 48 V 0.5 IEC 60947-5-1 || 65 W DC-13 1000000 cycles 3600 cyc/h 24 V 0.5 IEC 60947-5-1

1000000 cycles

1 NO

screw clamps terminals, 1 x 2.5 mm² with or without cable end || screw clamps terminals, 2 x 1.5 mm² with or without cable end

single

10 A fuse protection cartridge gG (gl)
