  11. Through-Beam Photoelectric Sensor, M12, Rectangular

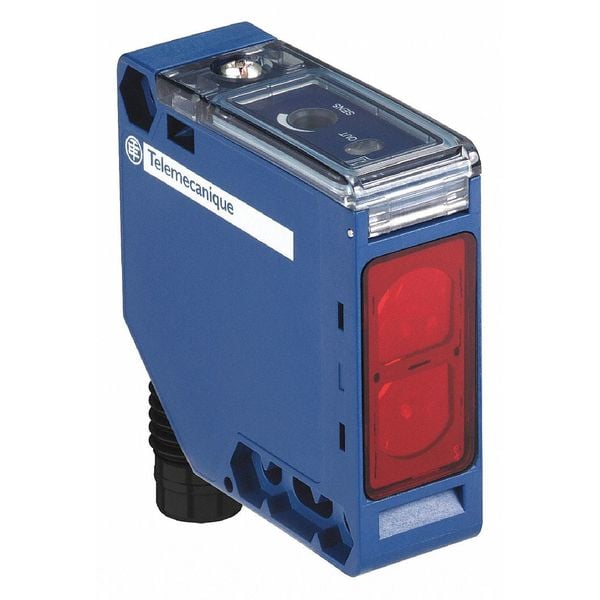

Telemecanique Sensors Through-Beam Photoelectric Sensor, M12, Rectangular XUK2AKSNM12T - main

Through-Beam Photoelectric Sensor, M12, Rectangular

  • Mfr # XUK2AKSNM12T

  • Zoro # G0653661

product price: $55.55
/ea

Key Features

Height
50 mm
Width
18 mm
Depth
50 mm
Material
plastic
Response Time
2 msec
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XUK2AKSNM12T
Zoro #
G0653661
UPC #
785901531173
Country of Origin
Indonesia

Dimensions

Height
50 mm
Width
18 mm
Depth
50 mm
Overall Height
50 mm
Overall Width
18 mm
Overall Depth
50 mm

Details

Item
Photoelectric Sensor
Material
plastic
Response Time
2 msec
Sensing Method
Through-Beam
Features
Scratch-Resistant Lens, PBT Case
Current Consumption
<= 35 mA no-load
IP Rating
IP65
Body Material
Plastic
Electrical Connection
M12
Standards
CE, CSA Certified, UL Listed
Switching Frequency
250 Hz
Maximum Delay Response
2 ms
Add On Input
test by emission breaking
Supply Circuit Type
DC
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Ambient Air Temperature For Operation
-25-55°C
Maximum Delay Recovery
2 ms
Electronic Sensor Type
photo-electric sensor transmitter
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Sensor Design
compact 50 x 50
Lens Material
PMMA
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Maximum Voltage Drop
<1.5 V closed state)
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Ambient Air Temperature For Storage
-40-70°C
Enclosure Material
PBT
Status Led
1 LED green)supply on
Maximum Delay First Up
15 ms
Sensor Name
XUK
Emission
infrared thru beam
Maximum Sensing Distance
45 m thru beam
[Sn] Nominal Sensing Distance
30-30 m thru beam need a receiver
Setting-Up
without sensitivity adjustment
Series Name
general purpose single mode
Detection System
thru beam
Electrical Installation Type
Direct Connector
DC Voltage Rating
12-24V DC
Operating Temperature - Minimum
-13 Degrees F
Number of Pins
4
Series
XUK
Style
Rectangular
Load Current - Maximum
100 mA
Operating Temperature - Maximum
131 Degrees F
Includes Indicator Lights
Indicator Lights Included
Sensing Distance - Maximum
45 m
Output Circuit Number of Wires
3

Description

Photoelectric Sensor
