  6. Through-Beam Photoelectric Sensor Set, Bare Wire, Straight, Cylindrical, Dark On, SPST

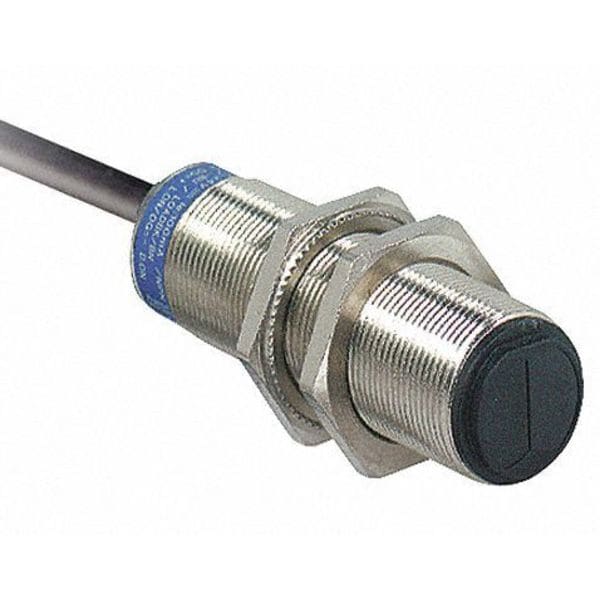

Telemecanique Sensors Through-Beam Photoelectric Sensor Set, Bare Wire, Straight, Cylindrical, Dark On, SPST XU2M18MA230 - main

Through-Beam Photoelectric Sensor Set, Bare Wire, Straight, Cylindrical, Dark On, SPST

  • Mfr # XU2M18MA230

  • Zoro # G3471361

product price:  $287.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Light Source
Red and Yellow LED
Operating Temp. Range
-25 Degrees to 55 Degrees C
Diameter - Cylindrical Photoelectric Sensor
18 mm
Features
PMMA Lens
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XU2M18MA230
Zoro #
G3471361
UPC #
785901348979
Country of Origin
France

Dimensions

Diameter - Cylindrical Photoelectric Sensor
18 mm
Length
82 mm
Length - Cylindrical Photoelectric Sensor
18 mm
Diameter
18 mm
Cable Length
2 m
Overall Height
95 mm
Overall Diameter
18 mm
Sensor Diameter
18 mm

Details

Item
Photoelectric Sensor Set
Material
metal
Light Source
Red and Yellow LED
Operating Temp. Range
-25 Degrees to 55 Degrees C
Features
PMMA Lens
Response Time
20.0 msec
Max. Sensing Distance - Cylindrical Photoelectric Sensor
20 m
Standards
CE, CSA Certified, IEC 60529, RoHS, UL Listed
Sensing Method
Through-Beam
IP Rating
IP67
Body Material
Brass
Electrical Connection
Bare Wire
Max. Load Current
200 mA
Power Requirement - Cylindrical Photoelectric Sensor
24 to 240V AC/DC
Operating Frequency
25 Hz
Line Of Sight Type
axial
Ambient Air Temperature For Storage
-40-70°C
Switching Capacity In Ma
10...200 mA to be used with 0.4 A quick-blow fuse in series with the load)
Maximum Delay Recovery
20 ms
Vibration Resistance
7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6
Maximum Delay First Up
300 ms
Enclosure Material
Nickel Plated Brass
Maximum Residual Current
1.5 mA open state
Ambient Air Temperature For Operation
-25-55°C
Lens Material
PMMA
Sensor Name
XU2
Wire Insulation Material
PvR
Status Led
1 LED yellow)output state || 1 LED red)instability
Series Name
general purpose single mode
Detection System
thru beam
Kit Composition
transmitter + receiver XU2M18MC230T + XU2M18MA230R
Electronic Sensor Type
photo-electric sensor
Maximum Sensing Distance
20 m
Maximum Delay Response
20 ms
Sensor Design
cylindrical M18
Switching Frequency
25 Hz
Output Type
solid state
[Us] Rated Supply Voltage
24...240 V AC/DC
Add On Output
without
Maximum Voltage Drop
<6 V closed state)
[Sn] Nominal Sensing Distance
15-15 m thru beam
Type Of Output Signal
discrete
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Emission
infrared thru beam
Supply Circuit Type
AC/DC
Setting-Up
sensitivity adjustment
Electrical Installation Type
Prewired Cable
Operating Temperature - Minimum
-13 Degrees F
Load Current - Maximum
200 mA
Emitted Sensor Light
Infrared
AC Voltage Rating
24-240V AC
Orientation
Straight
NEMA Enclosure Rating
No Enclosure
DC Voltage Rating
24-240V DC
Output Circuit Type
SPST
Operating Mode
Dark On
Sensing Distance - Maximum
15 m
Operating Temperature - Maximum
131 Degrees F
Includes Indicator Lights
Indicator Lights Included
Style
Cylindrical
Series
XU
Output Circuit Number of Wires
2

Description

Photoelectric Sensor Set, Sensing Method - Cylindrical Photoelectric Sensor Through Beam Set, Operating Mode - Photoelectric Sensor Dark On, Diameter - Cylindrical Photoelectric Sensor 18 mm, Power Requirement - Cylindrical Photoelectric Sensor 24 to 240V AC/DC, Electrical Connection - Cylindrical Photoelectric Sensor 2m Cable, Circuit Type - Cylindrical Photoelectric Sensor Solid State Relay, SPST, Max. Sensing Distance - Cylindrical Photoelectric Sensor 20 m
