  11. Through-Beam Photoelectric Sensor Set, M12, Right Angle, Cylindrical, PNP

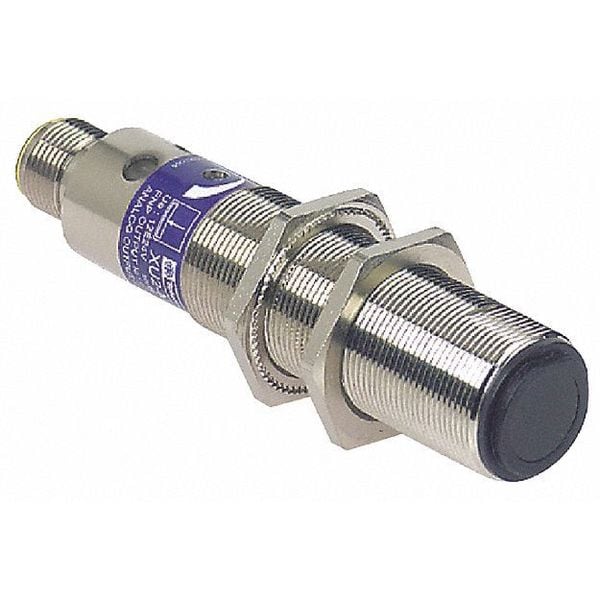

Telemecanique Sensors Through-Beam Photoelectric Sensor Set, M12, Right Angle, Cylindrical, PNP XU2M18AP20D - main

Through-Beam Photoelectric Sensor Set, M12, Right Angle, Cylindrical, PNP

  • Mfr # XU2M18AP20D

  • Zoro # G0654066

product price: $293.99
/ea
Free Shipping & Returns

Key Features

Material
metal
Body Material
Metal
Electrical Connection
M12
Overall Height
95 mm
Response Time
15 msec
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XU2M18AP20D
Zoro #
G0654066
UPC #
785901377450
Country of Origin
France

Dimensions

Overall Height
95 mm
Diameter
18 mm
Length
95 mm
Overall Diameter
18 mm
Overall Width
24 mm
Sensor Diameter
18 mm

Details

Item
Photoelectric Sensor Set
Material
metal
Body Material
Metal
Electrical Connection
M12
Response Time
15 msec
Sensing Method
Through-Beam
Current Consumption
<= 55 mA no-load
Standards
CE, CSA Certified, UL Listed
IP Rating
IP67
Features
Scratch-Resistant Lens, Double Insulation, PBT Case
Vibration Resistance
25 gn +/- 2 mm 10-55 Hz) IEC 60068-2-6
Add On Output
with analogue output
Maximum Delay Recovery
15 ms
Add On Input
breaking test (transmitter)
Maximum Delay Response
15 ms
Type Of Output Signal
discrete || analogue
[Sn] Nominal Sensing Distance
50-50 m thru beam
Maximum Sensing Distance
70 m
Detection System
thru beam
Switching Capacity In Ma
<= 100 mA overload and short-circuit protection)
Series Name
Application material handling
Shock Resistance
30 gn 11 ms) IEC 60068-2-27
Emission
infrared thru beam
Sensor Name
XU2
[Us] Rated Supply Voltage
12...24 V DC reverse polarity protection
Electronic Sensor Type
photo-electric sensor
Maximum Delay First Up
50 ms
Sensor Design
cylindrical M18
Status Led
1 LED green)supply on || 1 LED yellow)operation
Enclosure Material
Nickel Plated Brass
Setting-Up
sensitivity adjustment
Maximum Voltage Drop
<1.5 V closed state)
Ambient Air Temperature For Operation
-25-55°C
Switching Frequency
30 Hz
Kit Composition
transmitter + receiver
Analogue Output Range
4...20 mA
Output Type
solid state
Lens Material
PMMA
Supply Circuit Type
DC
Line Of Sight Type
axial
Ambient Air Temperature For Storage
-40-70°C
Number of Pins
4
Orientation
Right Angle
Includes Indicator Lights
Indicator Lights Included
Style
Cylindrical
Output Circuit Type
PNP
Operating Temperature - Minimum
-13 Degrees F
Operating Temperature - Maximum
131 Degrees F
DC Voltage Rating
12-24V DC
Load Current - Maximum
100 mA
Series
XU2
Electrical Installation Type
Direct Connector
Sensing Distance - Maximum
70 m
Output Circuit Number of Wires
3

Description

Photoelectric Sensor Set
